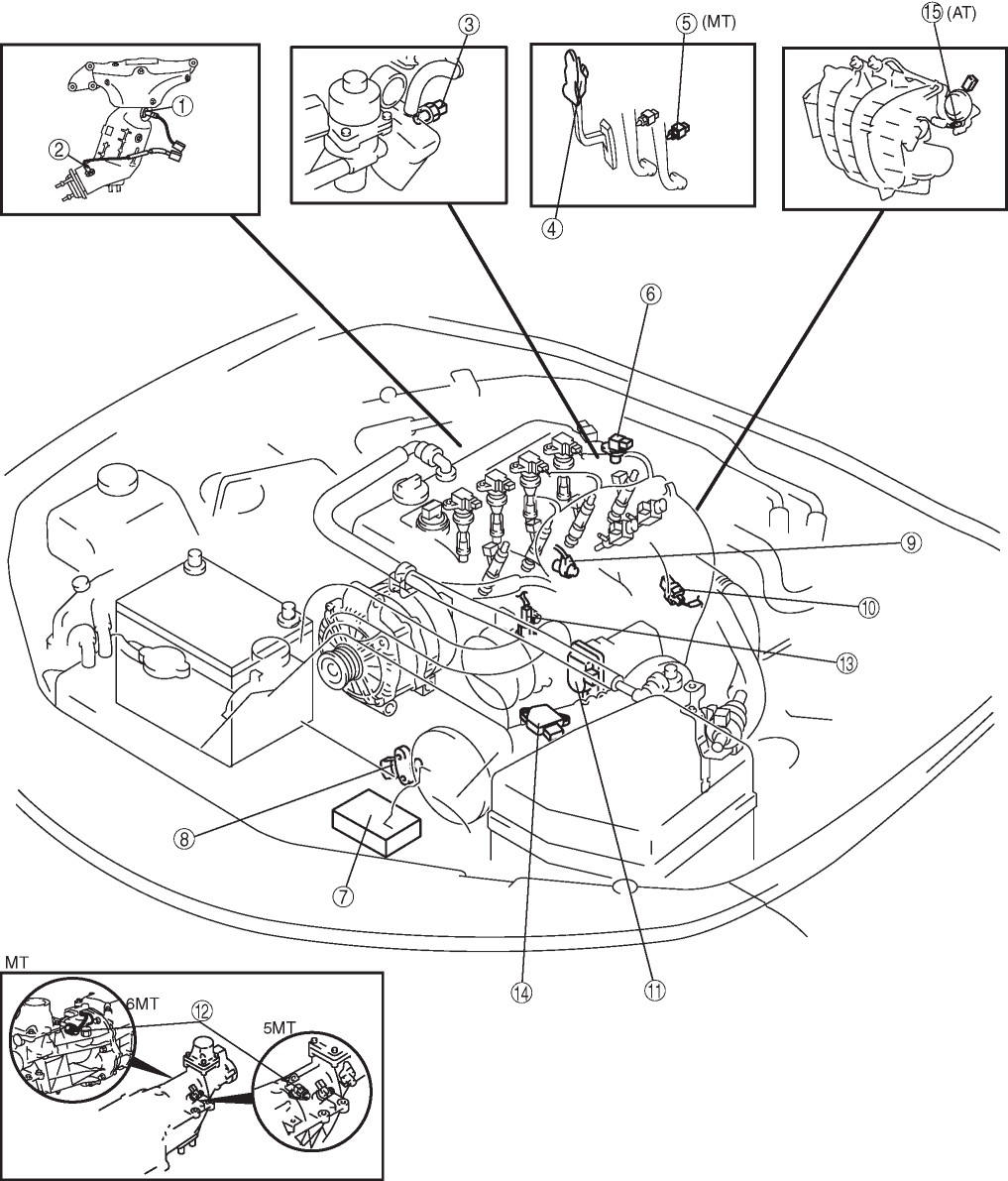

1

Front HO2S

(See FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [LF].)

(See FRONT HEATED OXYGEN SENSOR (HO2S) INSPECTION [LF].)

2

Rear HO2S

(See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [LF].)

(See REAR HEATED OXYGEN SENSOR (HO2S) INSPECTION [LF].)

3

ECT sensor

(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [LF].)

(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [LF].)

4

APP sensor

(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [LF].)

5

CPP switch

(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [LF].)

6

CMP sensor

(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [LF].)

(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [LF].)

7

PCM (built into BARO sensor)

(See PCM REMOVAL/INSTALLATION [LF].)

(See PCM INSPECTION [LF].)

(See PCM CONFIGURATION [LF].)

(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [LF].)

8

CKP sensor

(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [LF].)

(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [LF].)

9

KS

(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [LF].)

(See KNOCK SENSOR (KS) INSPECTION [LF].)

10

MAP sensor

(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [LF].)

(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [LF].)

11

TP sensor

(See THROTTLE POSITION (TP) SENSOR INSPECTION [LF].)

12

Neutral switch

(See NEUTRAL SWITCH INSPECTION [LF].)

13

PSP switch

(See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [LF].)

14

MAF/IAT sensor

(See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [LF].)

(See MASS AIR FLOW (MAF) SENSOR INSPECTION [LF].)

(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [LF].)

15

Variable tumble shutter valve switch

(See VARIABLE TUMBLE SHUTTER VALVE SWITCH REMOVAL/INSTALLATION [LF].)

(See VARIABLE TUMBLE SHUTTER VALVE SWITCH INSPECTION [LF].)
