2008 - MX-5 - Body and Accessories
SEAT DISASSEMBLY/ASSEMBLY
WARNING:
Handling the seat (side air bag, seat weight sensor) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings and cautions before handling the seat. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)
CAUTION:
If any of the following work is performed, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION.)
Replacement with a new seat weight sensor
Replacement with a new seat weight sensor control module
Replacement with new passenger-side seat parts
Disassembly of the passenger-side seat
If any of the following work is performed, perform the seat weight sensor inspection using the M-MDS. (See SEAT WEIGHT SENSOR INSPECTION.)
Removal of the passenger-side seat
Loosening and retightening of passenger’s seat fixing bolts
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

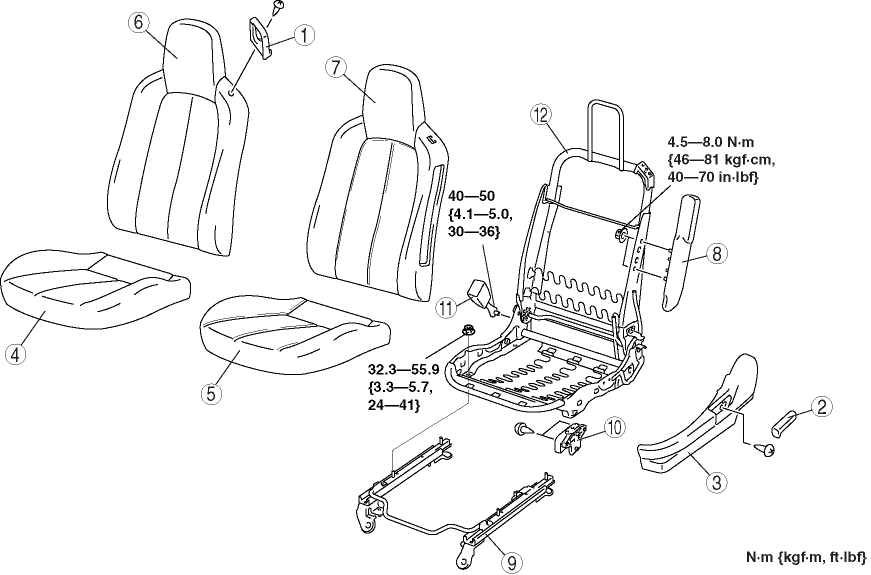

Driver"s Seat
|
1 |
Seat belt guide |
|
2 |
Recliner lever |
|
3 |
Side cover |
|
4 |
Seat cushion trim |
|
5 |
Seat cushion pad |
|
6 |
Seat back trim |
|
7 |
Seat back pad |
|
8 |
Side air bag module |
|
9 |
Slide adjuster |
|
10 |
Seat track position sensor |
|
11 |
Buckle (See BUCKLE REMOVAL/INSTALLATION.) |
|
12 |
Seat frame |

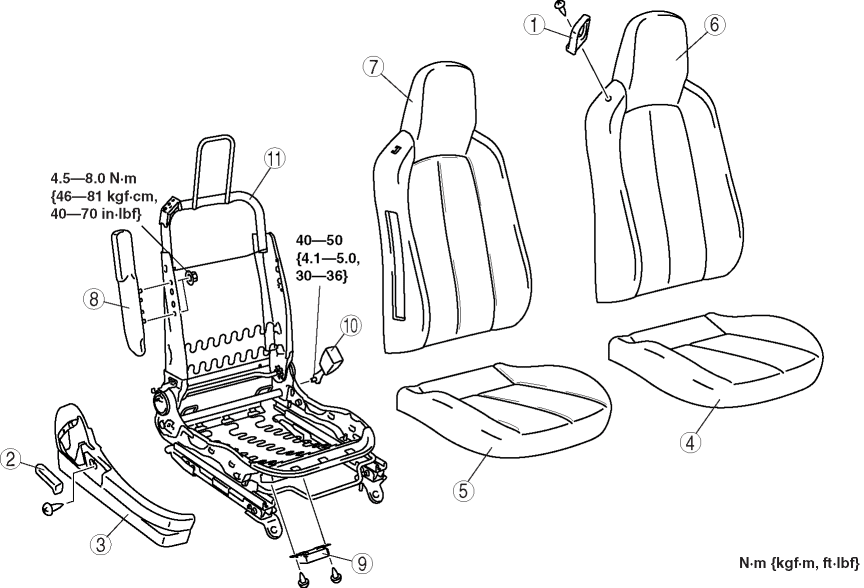

Passenger"s Seat
|
1 |
Seat belt guide |
|
2 |
Recliner lever |
|
3 |
Side cover |
|
4 |
Seat cushion trim |
|
5 |
Seat cushion pad |
|
6 |
Seat back trim |
|
7 |
Seat back pad |
|
8 |
Side air bag module |
|
9 |
Seat weight sensor control module (See SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION.) |
|
10 |
Buckle (See BUCKLE REMOVAL/INSTALLATION.) |
|
11 |
Seat frame |
