2008 - MX-5 - Restraints

SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:

1. Turn the ignition switch to the LOCK position.
2. Remove the battery cover.
3. Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [LF].)

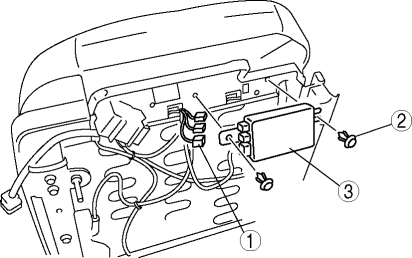

4. Remove in the order indicated in the table.



1

Connector

2

Fasner

3

Seat weight sensor control module


5. Install in the reverse order of removal.
