1. Turn the ignition switch to the LOCK position.
2. Remove the battery cover.
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
4. Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

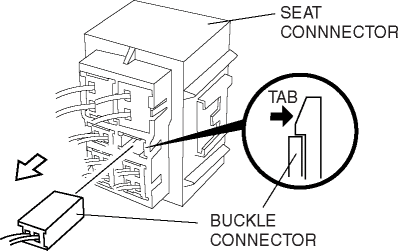

5. Detach the tab as shown in the figure and remove the connector from the seat connector.
6. Remove in the order indicated in the table.
1
Bolt
2
Buckle
7. Install in the reverse order of removal.
