2008 - MX-5 - Body and Accessories

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
4. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
5. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION.)

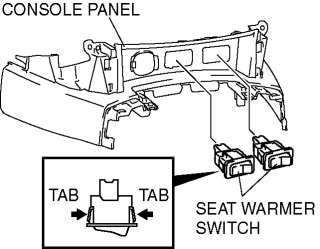

6. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

7. Install in the reverse order of removal.
