The OBD test inspects the integrity and function of the DSC and outputs the results when requested by the specific tests.
On-board diagnostic test also:
Provides a quick inspection of the DSC usually performed at the start of each diagnostic procedure.
Provides verification after repairs to ensure that no other faults occurred during service.
The OBD test is divided into 3 tests:
Read/clear diagnostic results, PID monitor and record and active command modes.
This function allows you to read or clear DTCs in the DSC HU/CM memory.
This function allows you to access certain data values, input signals, calculated values, and system status information.
This function allows you to control devices through the M-MDS.

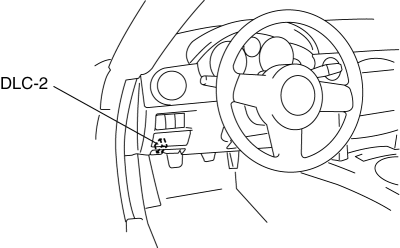

1. Connect M-MDS to the vehicle DLC‐2 connector.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
When using the IDS (laptop PC)
Select the “Toolbox” tab.
Select “Self Test”.
Select “Modules”.
Select “ABS”.
When using the PDS (Pocket PC)
Select “Module Tests”.
Select “ABS”.
Select “Self Test”.
3. Verify the DTC according to the directions on the screen.
If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.
4. After completion of repairs, clear all DTCs stored in the DSC. (See Clearing DTCs Procedures.)
1. Connect the M-MDS to the DLC‐2 connector.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
When using the IDS (laptop PC)
Select the “Toolbox” tab.
Select “Self Test”.
Select “Modules”.
Select “ABS”.
When using the PDS (Pocket PC)
Select “Module Tests”.
Select “ABS”.
Select “Self Test”.
3. Verify the DTC according to the directions on the screen.
4. Press the clear button on the DTC screen to clear the DTC.
5. Verify that no DTCs are displayed.
1. Connect M-MDS to the vehicle DLC‐2 connector.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
When using the IDS (laptop PC)
Select the “Toolbox” tab.
Select “DataLogger”.
Select “Modules”.
Select “ABS”.
When using the PDS (Pocket PC)
Select “Module Tests”.
Select “ABS”.
Select “DataLogger”.
3. Select the applicable PID from the PID table.
4. Verify the PID data according to the directions on the screen.
NOTE:
The PID/Data monitor function is used for monitoring the calculated value. Therefore, if the monitored value of the output parts is not within the specification, inspection of the monitored value of input parts corresponding to applicable output part control is necessary. In addition, because the system does not display output part malfunction as abnormality in the monitored value, it is necessary to inspect the output part individually using a active command modes function.
1. Connect M-MDS to the vehicle DLC‐2 connector.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
When using the IDS (laptop PC)
Select the “Toolbox” tab.
Select “DataLogger”.
Select “Modules”.
Select “ABS”.
When using the PDS (Pocket PC)
Select “Module Tests”.
Select “ABS”.
Select “DataLogger”.
3. Select the active command modes from the PID table.
4. Perform the active command modes, inspect the operations for each parts.
If there is no operation sound from the relay, motor, and solenoid after the active command mode inspection is performed, it is possible that there is an open or short circuit in the wiring harness, relay, motor or solenoid, or sticking and operation malfunction.
|
DTC |
System malfunction location |
Page |
|
M-MDS |
||
|
B1317 |
Power supply system |
|
|
B1318 |
Power supply system |
|
|
B1342 |
DSC HU/CM system |
|
|
B1484 |
Brake switch system |
|
|
B2477 |
DSC HU/CM configuration |
|
|
B2900 |
Incorrect DSC HU/CM installed |
|
|
C1093 |
DSC OFF switch system |
|
|
C1095 |
Pump motor, motor relay system |
|
|
C1096 |
Pump motor, motor relay system |
|
|
C1134 |
PCM, TCM communication system |
|
|
C1141 |
LF ABS sensor rotor system |
(See DTC C1141, C1142, C1143, C1144 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1142 |
RF ABS sensor rotor system |
(See DTC C1141, C1142, C1143, C1144 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1143 |
LR ABS sensor rotor system |
(See DTC C1141, C1142, C1143, C1144 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1144 |
RR ABS sensor rotor system |
(See DTC C1141, C1142, C1143, C1144 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1145 |
RF ABS wheel-speed sensor (open circuit) system |
(See DTC C1145, C1155, C1165, C1175 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1148 |
RF ABS wheel-speed sensor/ABS sensor rotor system |
(See DTC C1148, C1158, C1168, C1178 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1155 |
LF ABS wheel-speed sensor (open circuit) system |
(See DTC C1145, C1155, C1165, C1175 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1158 |
LF ABS wheel-speed sensor/ABS sensor rotor system |
(See DTC C1148, C1158, C1168, C1178 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1165 |
RR ABS wheel-speed sensor (open circuit) system |
(See DTC C1145, C1155, C1165, C1175 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1168 |
RR ABS wheel-speed sensor/ABS sensor rotor system |
(See DTC C1148, C1158, C1168, C1178 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1175 |
LR ABS wheel-speed sensor (open circuit) system |
(See DTC C1145, C1155, C1165, C1175 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1178 |
LR ABS wheel-speed sensor/ABS sensor rotor system |
(See DTC C1148, C1158, C1168, C1178 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1186 |
Valve relay system |
|
|
C1194 |
LF outlet solenoid valve system |
|
|
C1198 |
LF inlet solenoid valve system |
|
|
C1210 |
RF outlet solenoid valve system |
|
|
C1214 |
RF inlet solenoid valve system |
|
|
C1222 |
ABS wheel-speed sensor (slip monitor) system |
|
|
C1233 |
LF ABS wheel-speed sensor (short to ground) system |
(See DTC C1233, C1234, C1235, C1236 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1234 |
RF ABS wheel-speed sensor (short to ground) system |
(See DTC C1233, C1234, C1235, C1236 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1235 |
RR ABS wheel-speed sensor (short to ground) system |
(See DTC C1233, C1234, C1235, C1236 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1236 |
LR ABS wheel-speed sensor (short to ground) system |
(See DTC C1233, C1234, C1235, C1236 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1242 |
LR outlet solenoid valve system |
|
|
C1246 |
RR outlet solenoid valve system |
|
|
C1250 |
LR inlet solenoid valve system |
|
|
C1254 |
RR inlet solenoid valve system |
|
|
C1266 |
Valve relay system |
|
|
C1279 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1280 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1281 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1282 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1288 |
Brake fluid pressure sensor system |
(See DTC C1288, C1290, C1953 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1290 |
Brake fluid pressure sensor system |
(See DTC C1288, C1290, C1953 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1295 |
Steering angle sensor system |
(See DTC C1295, C1307, C1937, C1938, C1956 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1306 |
Steering angle sensor (abnormal initialization) system |
|
|
C1307 |
Steering angle sensor system |
(See DTC C1295, C1307, C1937, C1938, C1956 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1400 |
RF traction control solenoid valve system |
|
|
C1410 |
LF traction control solenoid valve system |
|
|
C1730 |
DSC HU/CM system |
|
|
C1805 |
Incorrect DSC HU/CM installed |
|
|
C1937 |
Steering angle sensor system |
(See DTC C1295, C1307, C1937, C1938, C1956 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1938 |
Steering angle sensor system |
(See DTC C1295, C1307, C1937, C1938, C1956 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1951 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1952 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1953 |
Brake fluid pressure sensor system |
(See DTC C1288, C1290, C1953 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1954 |
Brake switch system |
|
|
C1956 |
Steering angle sensor system |
(See DTC C1295, C1307, C1937, C1938, C1956 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1957 |
RF DSC switch solenoid valve system |
|
|
C1958 |
LF DSC switch solenoid valve system |
|
|
C1959 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
C1994 |
DSC control system |
|
|
C2768 |
Combined sensor system |
(See DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768 [DYNAMIC STABILITY CONTROL (DSC)].) |
|
U0073 |
CAN system communication error |
|
|
U0100 |
Communication error to PCM |
|
|
U0101 |
Communication error to TCM |
|
|
U0155 |
Communication error to instrument cluster |
|
|
U1900 |
Communication error to other module |
|
|
U2023 |
Abnormal message from PCM |
|
PID name (definition) |
Unit/Condition |
Operation condition (reference) |
Action |
DSC HU/CM terminal |
|
ABS_VOLT (System battery voltage value) |
V |
|
Inspect power supply circuit. (See DSC SYSTEM INSPECTION.) |
J |
|
ABSLF_I (Left front inlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSLF_O (Left front outlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSLR_I (Left rear inlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSLR_O (Left rear outlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSPMPRLY (Motor relay output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSRF_I (Right front inlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSRF_O (Right front outlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSRR_I (Right rear inlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSRR_O (Right rear outlet solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
ABSVLVRLY (Fail-safe relay output state) |
On/Off |
|
Inspect DSC HU/CM. (See DSC HU/CM INSPECTION) |
— |
|
BOO_ABS (Brake pedal switch input) |
On/Off |
|
Inspect the brake switch. |
N |
|
CCNTABS (Number of continuous codes) |
— |
|
Perform the DTC inspection. |
— |
|
LAT_ACCL |
G |
|
Inspect the combined sensor. |
AI |
|
LF_WSPD (Left front ABS wheel-speed sensor input) |
KPH, MPH |
|
Inspect the ABS wheel-speed sensor. |
F, E |
|
LR_WSPD (Left rear ABS wheel-speed sensor input) |
KPH, MPH |
|
Inspect the ABS wheel-speed sensor. |
G, H |
|
MCYLI P |
Pa, psi |
|
Inspect the brake fluid pressure sensor. |
— |
|
PMP_MOTOR (Pump motor output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
RF_WSPD (Right front ABS wheel-speed sensor input) |
KPH, MPH |
|
Inspect the ABS wheel-speed sensor. |
M, O |
|
RPM (Engine speed signal input) |
RPM |
|
Inspect the PCM. Inspect the instrument cluster. |
— |
|
RR_WSPD (Right rear ABS wheel-speed sensor input) |
KPH, MPH |
|
Inspect the ABS wheel-speed sensor. |
I, L |
|
SWA_POS |
° |
|
Inspect the steering angle sensor. |
— |
|
TPI |
% |
|
Inspect the throttle position sensor. |
— |
|
V_STB_L (LF stability control solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
V_STB_R (RF stability control solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
V_TRC_L (LF traction control solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
V_TRC_R (RF traction control solenoid valve output state) |
On/Off |
|
Inspect the DSC HU/CM. (See DSC HU/CM INSPECTION.) |
— |
|
YAW_RATE |
°/s |
|
Inspect the combined sensor. |
AA |
|
Command name |
Output part |
Operation |
Operating condition |
|
LATACCEL |
Combined sensor (lateral acceleration) initialization |
FALSE/TRUE |
Ignition switch at ON |
|
LF_INLET |
LF inlet solenoid valve |
On/Off |
|
|
LF_OUTLET |
LF outlet solenoid valve |
||
|
LR_INLET |
LR inlet solenoid valve |
||
|
LR_OUTLET |
LR outlet solenoid valve |
||
|
PMP_MOTOR |
Pump motor |
||
|
RF_INLET |
RF inlet solenoid valve |
||
|
RF_OUTLET |
RF outlet solenoid valve |
||
|
RR_INLET |
RR inlet solenoid valve |
||
|
RR_OUTLET |
RR outlet solenoid valve |
||
|
SAS_CAL |
Steering angle sensor initialization |
FALSE/TRUE |
|
|
STAB_IND |
DSC indicator light |
On/Off |
|
|
TRAC OFF |
DSC OFF light |
||
|
V_STB_L |
LF stability control solenoid valve |
||
|
V_STB_R |
RF stability control solenoid valve |
||
|
V_TRC_L |
LF traction control solenoid valve |
||
|
V_TRC_R |
RF traction control solenoid valve |
||
|
YAWRATE |
Combined sensor (yaw rate) initialization |
