DTC

B1317, B1318

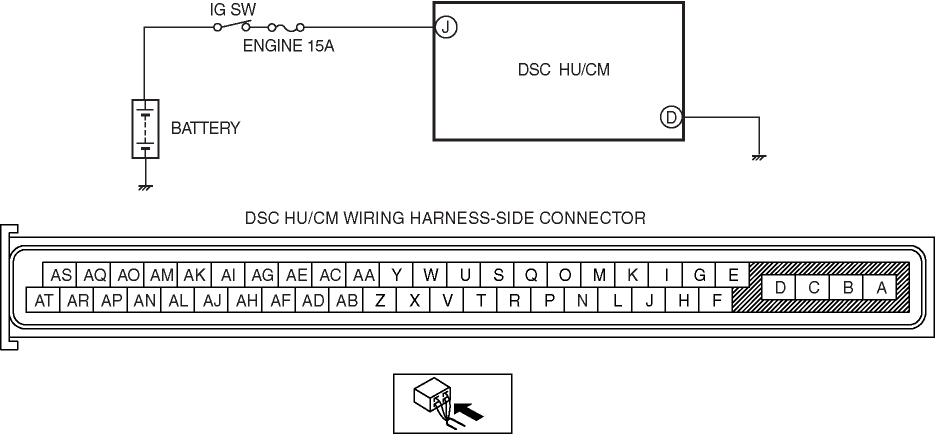

Power supply system

DETECTION CONDITION

• B1317

• The voltage at DSC HU/CM terminal J is 16.8 V or more.

• B1318

• The vehicle speed exceeds 6 km/h and the voltage at ABS HU/CM terminal J is less than 9.6 V

POSSIBLE CAUSE

• ENGINE 15 A fuse malfunction

• Open circuit or short to ground in the wiring harness between the DSC HU/CM terminal J and the battery

• Open circuit or faulty ground in the wiring harness between the DSC HU/CM terminal D and the body ground

• Battery deterioration

• Generator malfunction

• Poor connection at connectors (female terminal)

STEP

INSPECTION

ACTION

1

• Is the battery terminal voltage normal?

Yes

Make sure that battery terminal connection is normal.

Go to the next step.

No

Charge or replace the battery, then go to Step 6.

(See BATTERY RECHARGING [LF].)

(See BATTERY REMOVAL/INSTALLATION [LF].)

2

• Is battery specific gravity as specified?

Yes

Go to the next step.

No

Replace the battery, then go to Step 6.

(See BATTERY REMOVAL/INSTALLATION [LF].)

3

• Are the generator and drive belt tensions normal?

Yes

Go to the next step.

No

Replace generator and/or drive belt as necessary, then go to Step 6.

(See DRIVE BELT REPLACEMENT [LF].)

(See GENERATOR REMOVAL/INSTALLATION [LF].)

4

• Start the engine.

• Measure the voltage between DSC HU/CM terminal J and ground.

• Is the voltage approx. 10 V?

Yes

Go to the next step.

No

Repair or replace the wiring harness for open circuit between the DSC HU/CM and ground, then go to Step 6.

5

• Turn the ignition switch off.

• Measure the resistance between ground and DSC HU/CM terminal D.

• Is the resistance within 0—1 ohm?

Yes

Go to the next step.

No

If there is no continuity:

• Repair or replace the wiring harness for open circuit between the DSC HU/CM and ground, then go to the next step.

If the resistance is not within 0—1 ohm:

• Repair or replace the wiring harness for poor ground, then go to the next step.

6

• Make sure to reconnect all disconnected connectors.

• Clear the DTC from the memory.

  (See ON-BOARD DIAGNOSIS[DYNAMIC STABILITY CONTROL (DSC)].)

• Start the engine and drive the vehicle at 10 km/h {6.2 mph} or more.

• Is the same DTC present?

Yes

Replace the DSC HU/CM, then go to the next step.

(See DSC HU/CM REMOVAL/INSTALLATION.)

No

Go to the next step.

7

• Are any other DTCs present?

Yes

Go to the applicable DTC inspection.

(See ON-BOARD DIAGNOSIS[DYNAMIC STABILITY CONTROL (DSC)].)

No

DTC troubleshooting completed.
