2008 - MX-5 - Body and Accessories

A-PILLAR TRIM REMOVAL/INSTALLATION

1. Remove the female wedge. (See CONVERTIBLE TOP DISASSEMBLY/ASSEMBLY.)

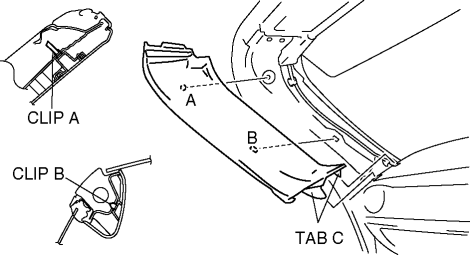

2. Pull the A-pillar trim, then disengage clips A and B.

3. Pull the A‐pillar trim upward, then disengage tabs C from the body.
4. Remove the A-pillar trim.
5. Install in the reverse order of removal.
