2008 - MX-5 - Body and Accessories

DECORATION PANEL REMOVAL/INSTALLATION

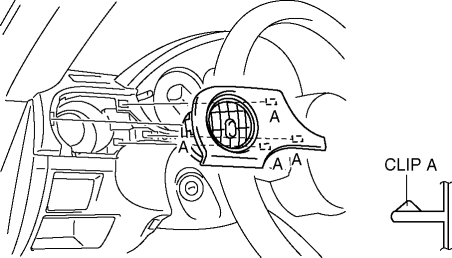

Driver’s Side

1. Pull the decoration panel outward and detach clips A.

2. Remove the decoration panel.
3. Install in the reverse order of removal.

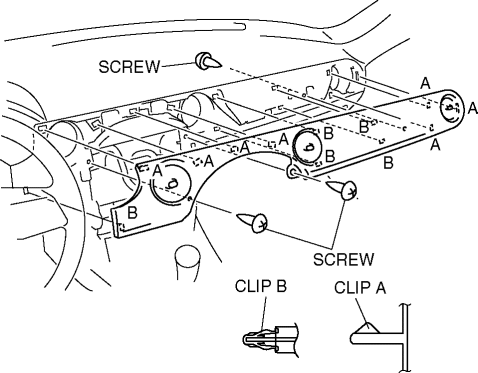

Passenger’s Side

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
4. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
5. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
6. Remove the three screws.

7. Pull the decoration panel outward and detach clips A and B.
8. Remove the decoration panel.
9. Install in the reverse order of removal.
