1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION.)
3. Remove the screws.
4. Disconnect the connector, then remove the keyless antenna.
5. Install in the reverse order of removal.

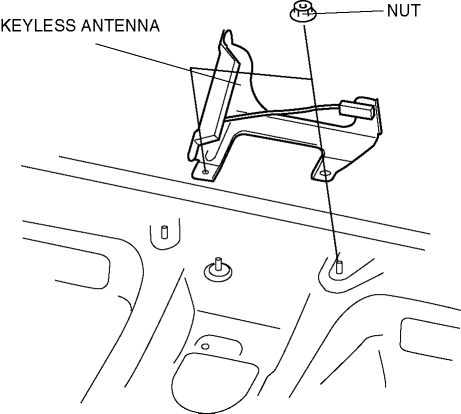

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the nuts.
3. Disconnect the connector, then remove the keyless antenna.
4. Install in the reverse order of removal.
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION.)
3. Remove the side panel. (See SIDE PANEL REMOVAL/INSTALLATION.)

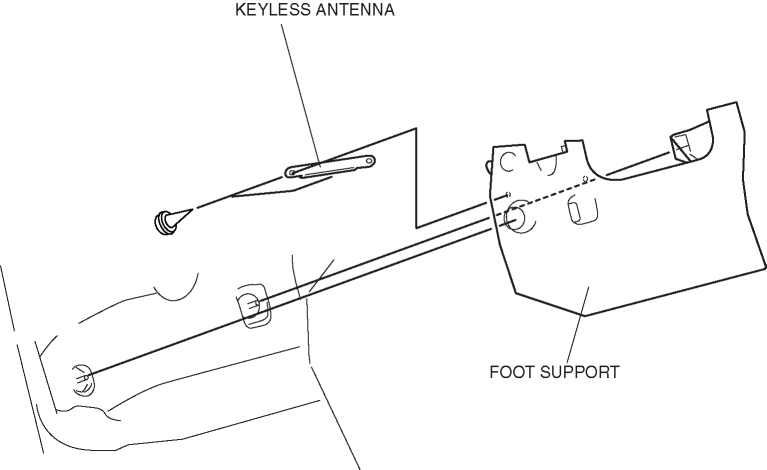

4. Partially peel back the floor covering so that the foot support can be removed.
5. Remove the foot support.
6. Disconnect the connector, then remove the screws.
7. Remove the keyless antenna.
8. Install in the reverse order of removal.
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
4. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION.)
5. Remove the clips.
6. Disconnect the connector, then remove the keyless antenna.
7. Install in the reverse order of removal.

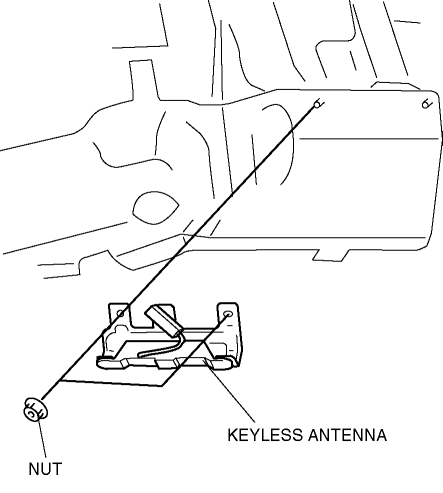

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
3. Remove the back trim. (See BACK TRIM REMOVAL/INSTALLATION.)
4. Remove the nuts.
5. Disconnect the connector, then remove the keyless antenna.
6. Install in the reverse order of removal.

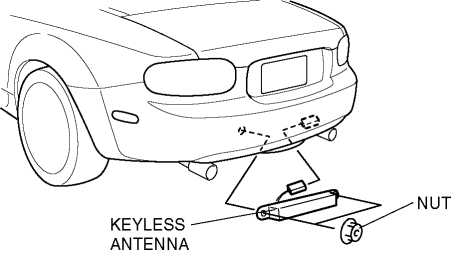

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove the nuts.
4. Disconnect the connector, then remove the keyless antenna.
5. Install in the reverse order of removal.
