2008 - MX-5 - Body and Accessories

DOOR TRIM REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

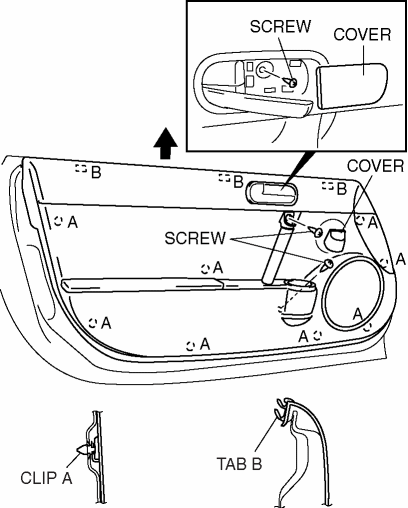

3. Remove the covers.

4. Remove the screws.
5. Detach clips A from the door trim using fastener remover.
6. Pull the door trim upward and detach tabs B from the door.
7. Disconnect the power outer mirror switch connector. (driver’s side)
8. Remove the inner handle cover.

9. Remove the door trim.
10. Install in the reverse order of removal.
