2008 - MX-5 - Body and Accessories

TRUNK SIDE TRIM REMOVAL/INSTALLATION

1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)
2. Remove the partition board. (See PARTITION BOARD REMOVAL/INSTALLATION.)

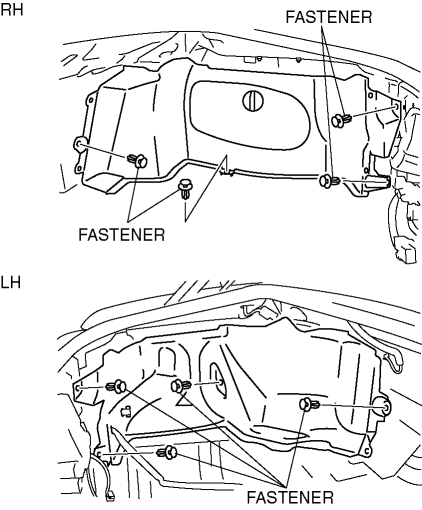

3. Remove the fasteners.

4. Remove the trunk side trim.
5. Install in the reverse order of removal.
