2008 - MX-5 - Body and Accessories

SCUFF PLATE REMOVAL/INSTALLATION

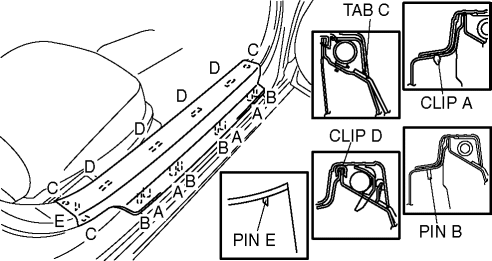

1. Pull the scuff plate upward while detaching tabs C, and then detach clips A and D, and pins B (4), E (1) from the body, and remove the scuff plate.

2. Install in the reverse order of removal.
