1. Disconnect the negative battery cable.(SeeBATTERY REMOVAL/INSTALLATION [LF].)
2. To remove the door stay (checker), remove the following parts:a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)b. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)
3. To remove the door hinges, remove the following parts:a. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)b. Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)c. Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)d. Mad guarde. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

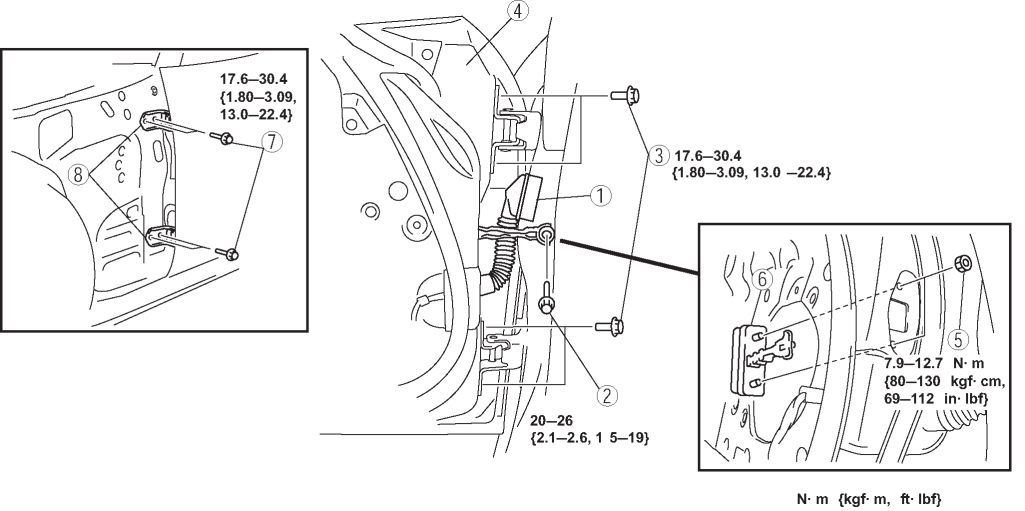

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Adjust the door. (See DOOR ADJUSTMENT.)
|
1 |
Connector (See Connector Removal Note.) |
|
2 |
Bolt A |
|
3 |
Bolt B |
|
4 |
Door |
|
5 |
Nut |
|
6 |
Door stay (checker) |
|
7 |
Bolt C |
|
8 |
Door hinge |
1. Pull down the lever in the direction indicated by the arrow and disconnect the connector.
