1 |
Fastener |
|
2 |
Bolt A |
|
3 |
Bolt B |
|
4 |
Bolt C |
|
5 |
Bolt D |
|
6 |
Front fender panel |
1. Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
4. Remove the side step molding. (SeeSIDE STEP MOLDING REMOVAL.) (SeeSIDE STEP MOLDING INSTALLATION.)

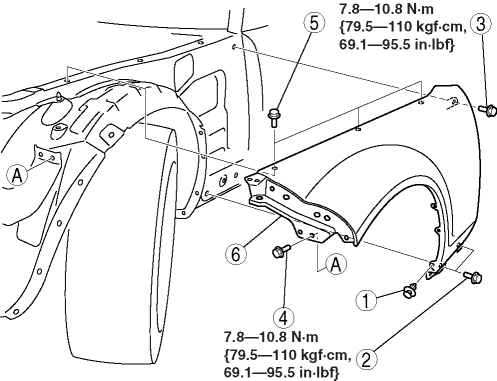

5. Remove in the order indicated in the table.
1
Fastener
2
Bolt A
3
Bolt B
4
Bolt C
5
Bolt D
6
Front fender panel
6. Install in the reverse order of removal.
