2008 - MX-5 - Body and Accessories

FRONT BUMPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [LF].)

2. Disconnect the front fog light connectors for vehicles with front fog lights.

3. Disconnect the side marker light connectors.

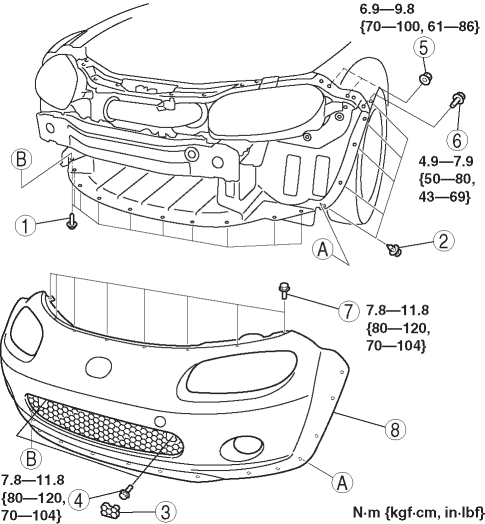

4. Remove in the order indicated in the table.

1	Screw A
2	Fastener A
3	Cover
4	Bolt A
5	Nut
6	Bolt B
7	Bolt C
8	Front bumper

5. Install in the reverse order of removal.

6. Adjust the front fog light aiming for vehicles with the front fog lights. (See FRONT FOG LIGHT AIMING.)
