2008 - MX-5 - Engine

GENERATOR REMOVAL/INSTALLATION [LF]

WARNING:

• Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

• When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before performing the following operation.

CAUTION:

• The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.

1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF].)

2. Remove the drive belt. (See DRIVE BELT REPLACEMENT [LF].)

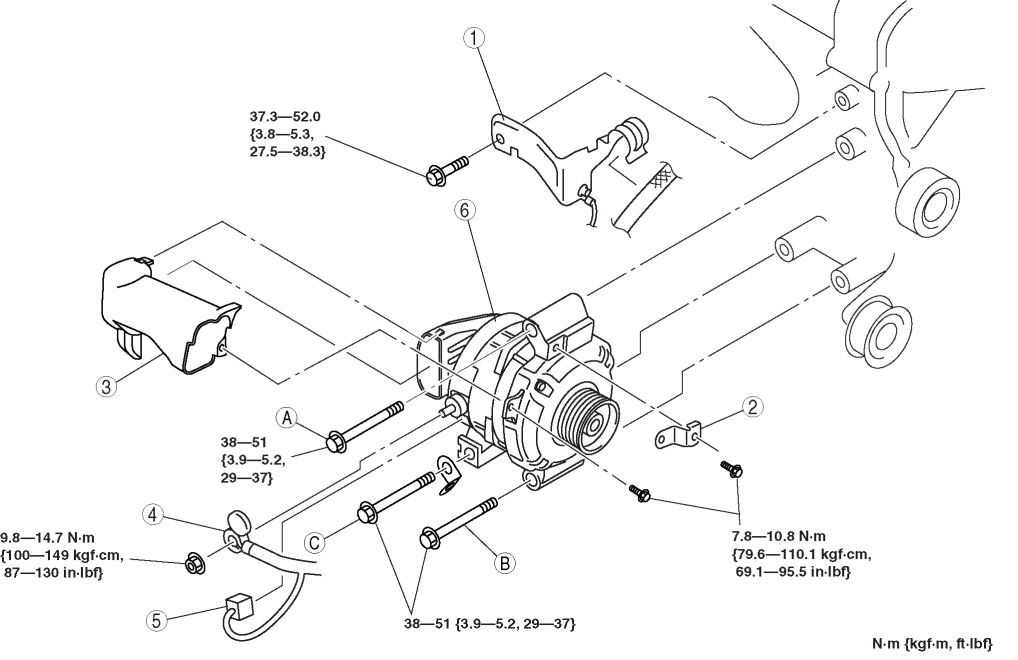

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1	P/S pressure hose bracket
2	Generator bracket
3	Generator duct
4	B terminal cable
5	Generator connector
6	Generator (See GENERATOR REMOVAL/INSTALLATION [LF].)

Generator Installation Note

1. Tighten bolt A temporarily.

2. Tighten bolt B, C to the specified tightening torque.

3. Tighten bolt A to the specified tightening torque.
