2008 - MX-5 - Brakes

DSC HU/CM REMOVAL/INSTALLATION

CAUTION:

1. Perform DSC configuration. (See DSC CONFIGURATION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, perform the combined sensor initialization procedure. (See COMBINED SENSOR INITIALIZATION PROCEDURE.)
5. After installation, perform the steering angle sensor initialization procedure. (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE.)
6. After installation, perform the steering angle signal initialization procedure. (See STEERING ANGLE SIGNAL INITIALIZATION PROCEDURE.)

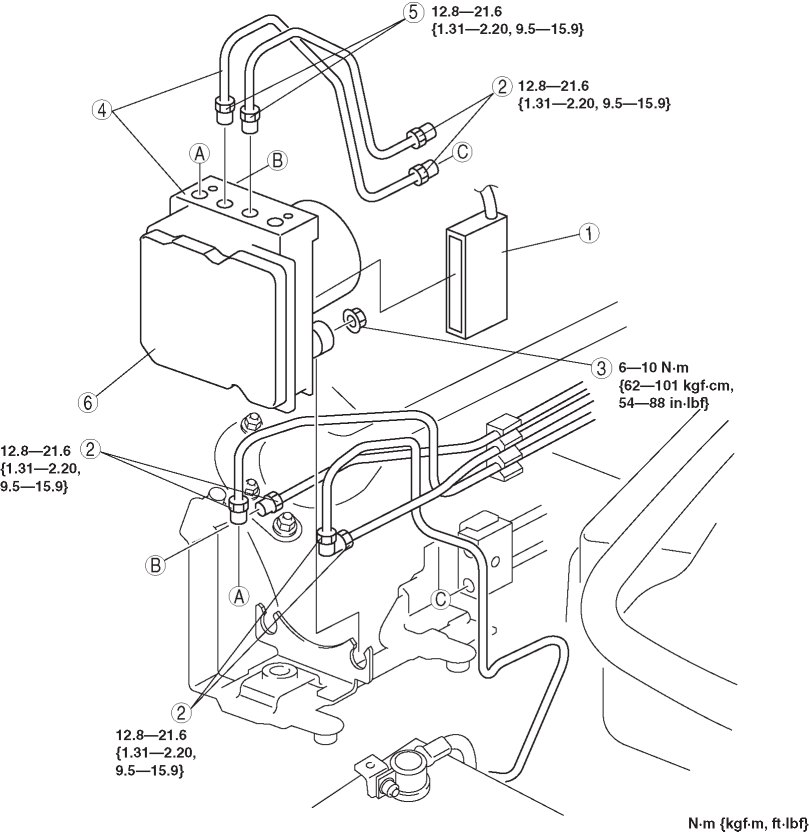

1

DSC HU/CM connector

(See DSC HU/CM Connector Removal Note.)

(See DSC HU/CM Connector Installation Note.)

2

Brake pipe

(See Brake Pipe Removal Note.)

(See Brake Pipe Installation Note.)

3

Nut

4

DSC HU/CM, brake pipe

5

Brake pipe (DSC HU/CM—brake pipe joint)

(See Brake Pipe (DSC HU/CM—brake pipe joint) Installation Note.)

6

ABS HU/CM


DSC HU/CM Connector Removal Note

1. Pull the lock lever up in the direction of the arrow.

2. Pull the connector toward the vehicle rear and remove it.

Brake Pipe Removal Note

1. Place an alignment mark on the brake pipe and DSC HU/CM.

2. Apply protective tape to the connector to prevent brake fluid from entering.
3. Remove the brake pipe.

Brake Pipe (DSC HU/CM—brake pipe joint) Installation Note

1. Align with the mark made before removing the brake pipe and temporarily install the brake pipe to the DSC HU/CM.

CAUTION:

Brake Pipe Installation Note

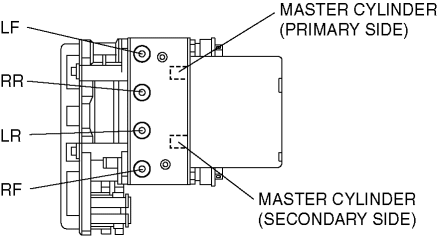

1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

2. Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.

DSC HU/CM Connector Installation Note

1. After connecting the connector, verify that the lock lever is completely pushed in.
