2008 - MX-5 - Engine

ENGINE DISASSEMBLY/ASSEMBLY [LF]

1. Remove the transmission from the engine. (See TRANSMISSION REMOVAL/INSTALLATION [M15M-D].)(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

2. Remove the following parts:

a. The clutch unit (MT) (See CLUTCH UNIT REMOVAL/INSTALLATION.)

b. The ignition coil (See IGNITION COIL REMOVAL/INSTALLATION [LF].)

c. The CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [LF].)

d. The power steering oil pump (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION.)

e. The fuel distributor and fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [LF].)

f. The intake-air system (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF].)

g. The exhaust system (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF].)

h. The CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [LF].)

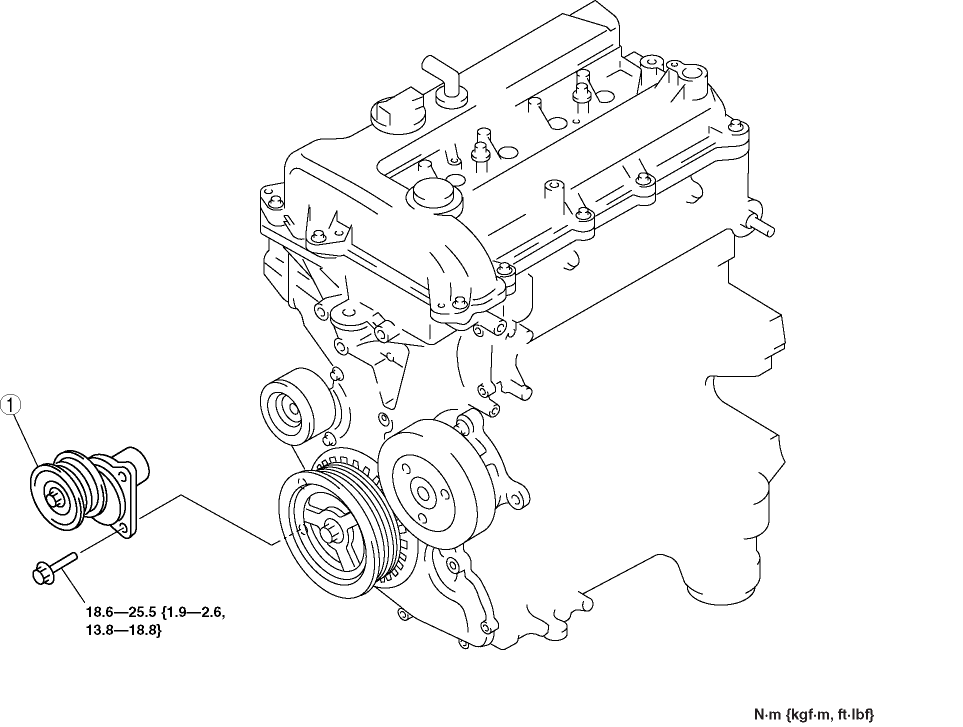

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
