2008 - MX-5 - Engine

IGNITION COIL REMOVAL/INSTALLATION [LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF].)

4. Remove the front suspension tower bar (joint). (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)

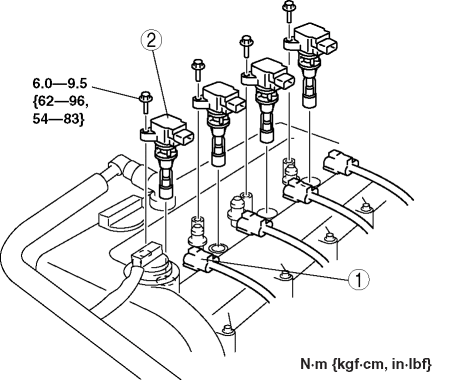

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

1	Connector
2	Ignition coil
