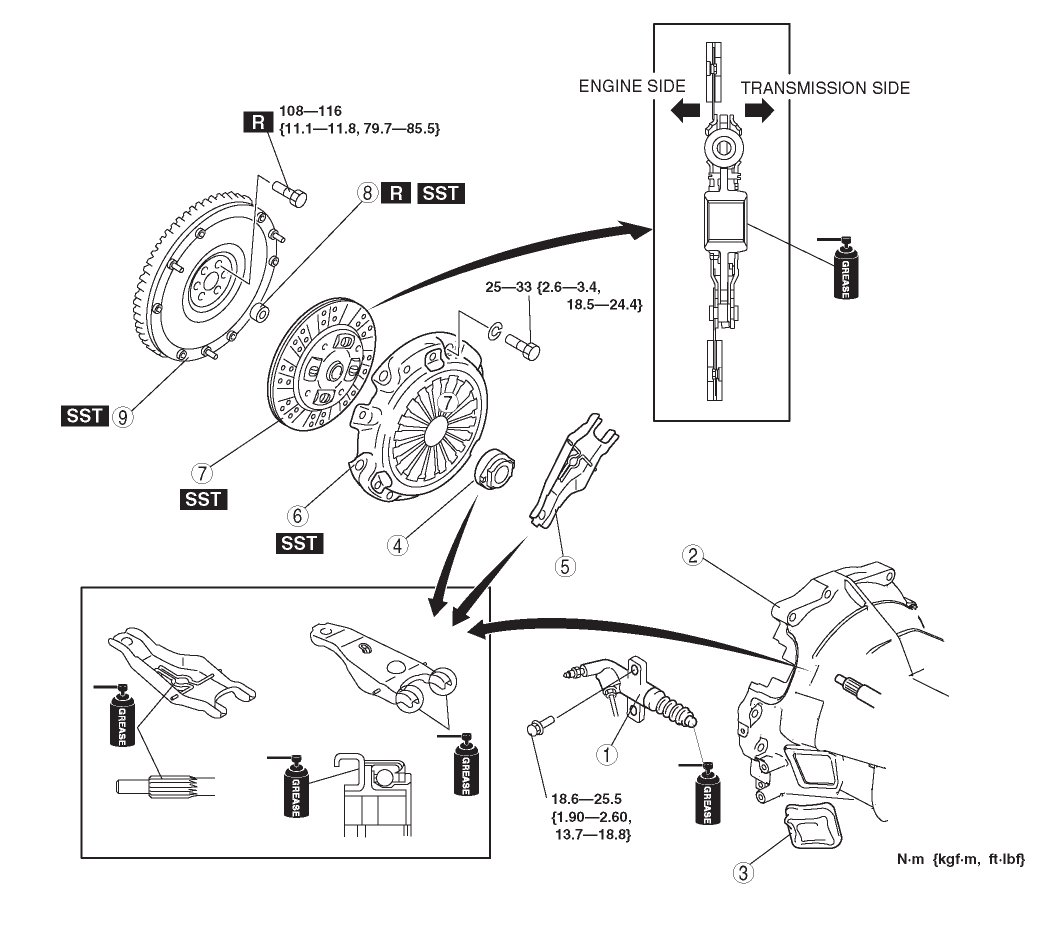

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
|
1 |
Clutch release cylinder |
|
2 |
Manual transmission |
|
3 |
Boot |
|
4 |
Clutch release collar |
|
5 |
Clutch release fork |
|
6 |
Clutch cover |
|
7 |
Clutch disc |
|
8 |
Pilot bearing (See Pilot Bearing Removal Note.) |
|
9 |
Flywheel (See Flywheel Removal Note.) (See Flywheel Installation Note.) |
1. Install the SSTs.
2. Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
3. Remove the clutch cover and disc.
NOTE:
The pilot bearing does not need to be removed unless you are replacing it.
1. Use the SST to remove the pilot bearing.
1. Install the pilot bearing using the corresponding 20 mm {0.79 in} side of a Snap-on brand millimeter size bushing driver set A160M adapter A160M7 (20—22 mm {0.79—0.86 in}) or substitution tool.
Substitution tool
Outer diameter: 21 mm {0.83 in}
Inner diameter: 19 mm {0.75 in}

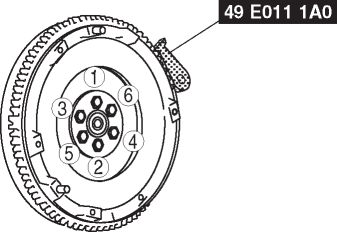

1. Hold the flywheel using the SST.
2. Remove the bolts evenly and gradually in a crisscross pattern.
3. Remove the flywheel.
4. Inspect for oil leakage from the crankshaft rear oil seal.
If there is any malfunction, replace the crankshaft rear oil seal.

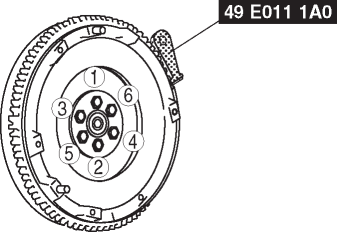

1. Clean the crankshaft thread holes.
2. Install the flywheel to the crankshaft.
3. Handâtighten the flywheel lock bolts.
4. Install the SST to the flywheel.
5. Gradually tighten the flywheel lock bolts in a crisscross pattern.
Tightening torque
108—116 N·m
{11.1—11.8 kgf·m, 79.7—85.5 ft·lbf}

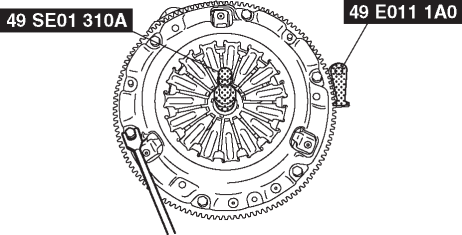

1. Hold the clutch disc position using the SST.
1. Install the SSTs.
2. Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque
25.0—33.0 N·m
{2.6—3.4 kgf·m, 18.5—24.4 ft·lbf}
