2008 - MX-5 - Body and Accessories

FRONT SIDE TRIM REMOVAL/INSTALLATION

1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION.)

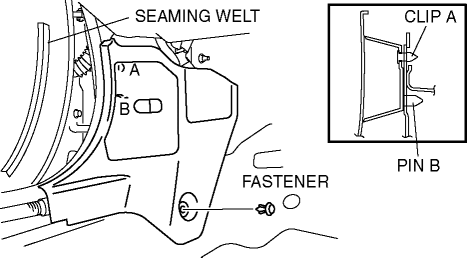

2. Remove the seaming welt.

3. Remove the fastener.

4. Pull the front side trim toward you, then disengage clip A and pin B from the body.

5. Remove the front side trim.

6. Install in the reverse order of removal.
