1. Remove the following parts:a. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)b. Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)c. Center speaker cover (See CENTER SPEAKER REMOVAL/INSTALLATION.)d. Center speaker (vehicles with Bose®) (See CENTER SPEAKER REMOVAL/INSTALLATION.)e. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

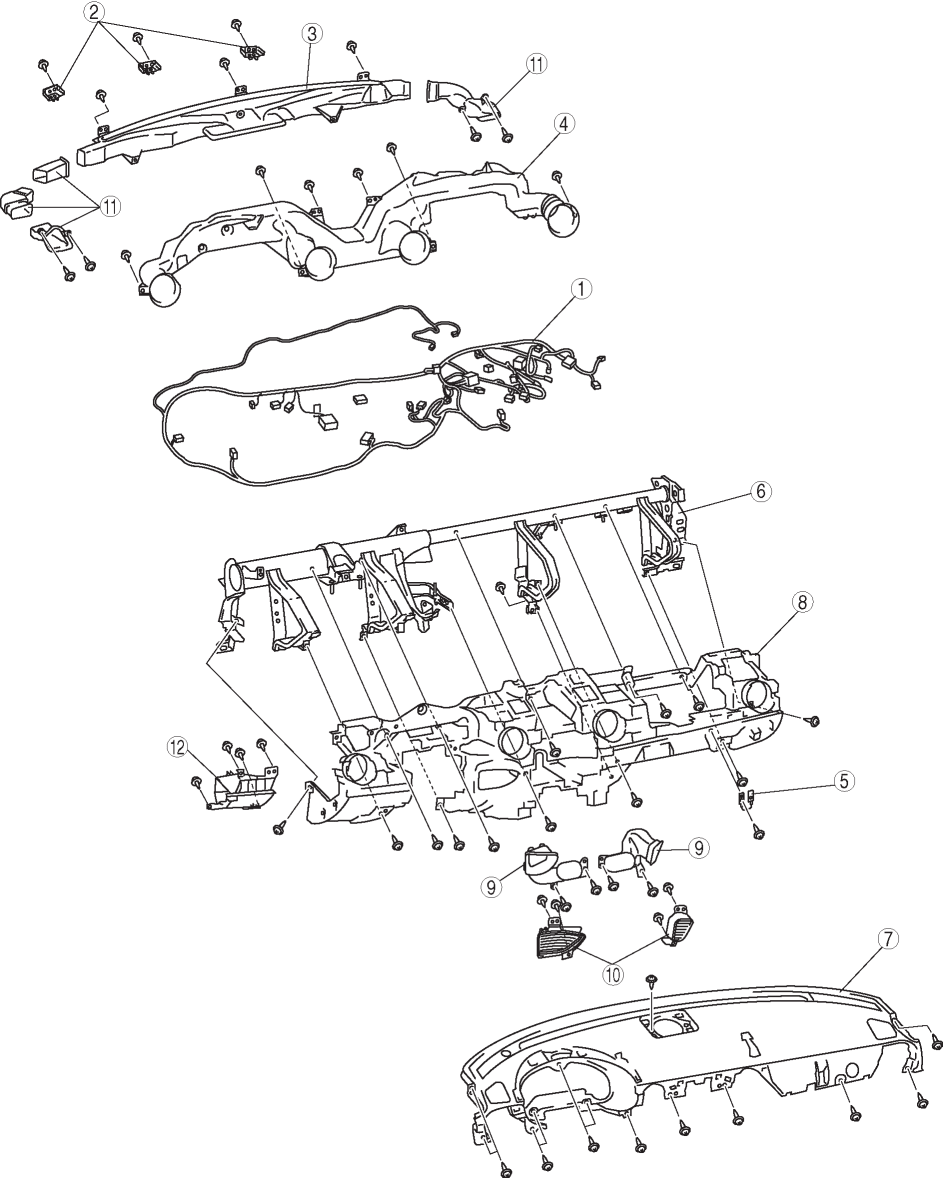

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
|
1 |
Dashboard wiring harness |
|
2 |
Pin |
|
3 |
Defroster duct |
|
4 |
Center duct |
|
5 |
Striker |
|
6 |
Dashboard member |
|
7 |
Dashboard panel |
|
8 |
Dashboard lower panel |
|
9 |
Shower duct |
|
10 |
Lower ventilator grille |
|
11 |
Side demister nozzle |
|
12 |
Switch panel |
