2008 - MX-5 - Body and Accessories

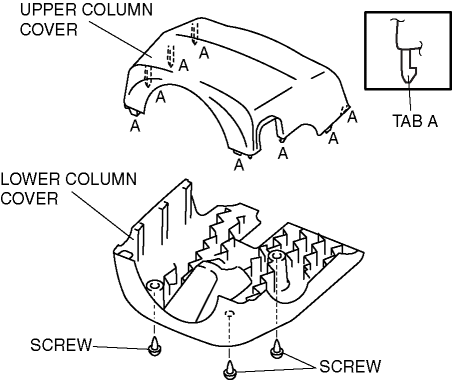

COLUMN COVER REMOVAL/INSTALLATION

1. Remove the tab A, then remove the upper column cover.

2. Remove the screws, then remove the lower column cover.
3. Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)
4. Install in the reverse order of removal.
