2008 - MX-5 - Body and Accessories

SHOCK ABSORBING PAD REMOVAL/INSTALLATION [DETACHABLE HARDTOP]

1. Remove the detachable hardtop.

2. Remove the following parts:

a. B-pillar garnish (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

b. Side lock (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

c. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL [DETACHABLE HARDTOP], B-PILLAR UPPER TRIM INSTALLATION [DETACHABLE HARDTOP].)

d. Male wedge cover (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

e. Top lock cover (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

f. Headliner (See HEADLINER REMOVAL/INSTALLATION [DETACHABLE HARDTOP].)

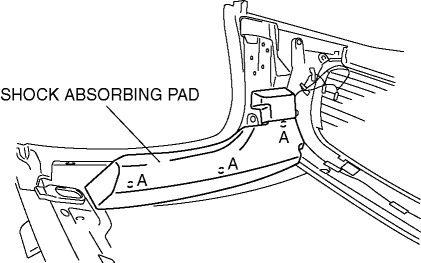

3. Pull the shock absorbing pad rearward and detach clips A.

4. Remove the shock-absorbing pad.

5. Install in the reverse order of removal.
