2008 - MX-5 - Body and Accessories

MIDDLE ROOF PANEL WEATHERSTRIP REMOVAL/INSTALLATION

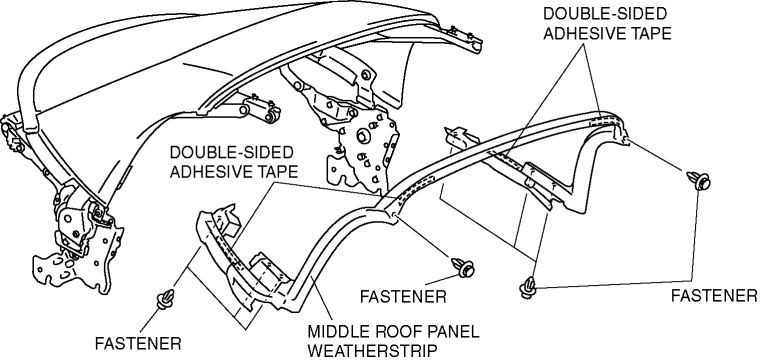

Removal

1. Remove the fasteners.

2. Peel off the double-sided adhesive tape.
3. Remove the middle roof panel weatherstrip.

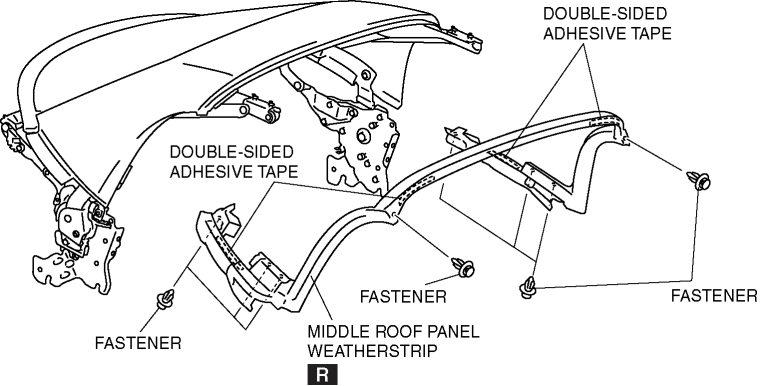

Installation

WARNING:

NOTE:

1. Remove the double-sided adhesive tape on the middle roof panel using a utility knife.
2. Remove any grease or dirt from the adhesion surface of the middle roof panel.
3. Install the fasteners.

4. Peel off the tape backings and attach the weatherstrip by applying pressure.
