1. Remove the middle roof panel weatherstrip. (See MIDDLE ROOF PANEL WEATHERSTRIP REMOVAL/INSTALLATION.)

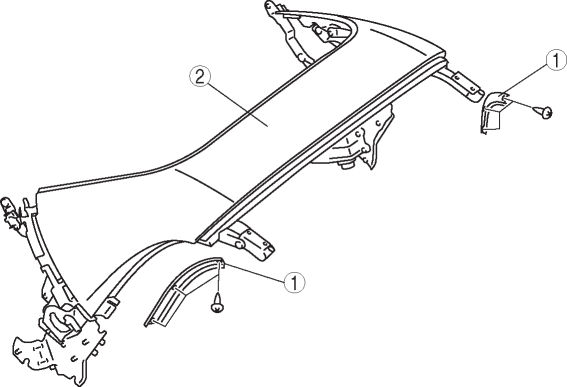

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
|
1 |
Retainer (See Retainer Disassembly Note.) (See Retainer Assembly Note.) |
|
2 |
Middle roof panel |
1. Mark around the retainer installation screws with paint before removing them.
1. Install the retainers to the link, aligning the retainer marks with the retainer installation screws.
