2008 - MX-5 - Body and Accessories

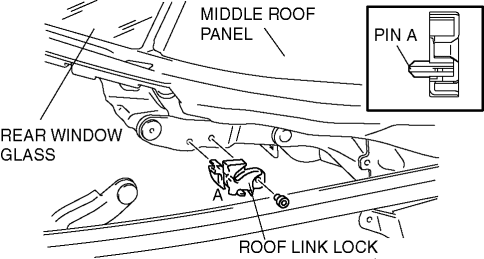

1. Fully open the deck panel.
2. Remove the rear defroster harness from the roof link lock (LH). (See REAR WINDOW GLASS REMOVAL/INSTALLATION [POWER RETRACTABLE HARDTOP].)
3. Remove the bolt.

4. Remove the pin A.
5. Remove the roof link lock.
6. Install in the reverse order of removal.
