2008 - MX-5 - Body and Accessories

BLACK-OUT FILM REMOVAL

Applied VIN (assumed)

• JM1 NC15F*8# 100001—156263

• JM1 NC16F*8# 100001—156260

• JM1 NC25F*8# 100001—156239

• JM1 NC26F*8# 100001—156244

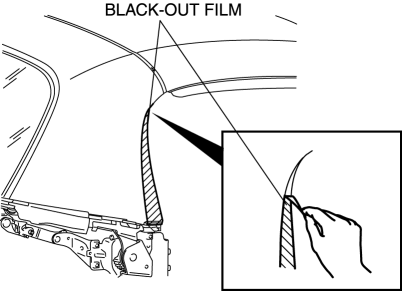

Front

1. Partially peel back the middle roof weatherstrip.

2. Peel off the black-out film by pulling it outward from one end.

NOTE:

• Slowly remove the black-out film since it may tear easily.

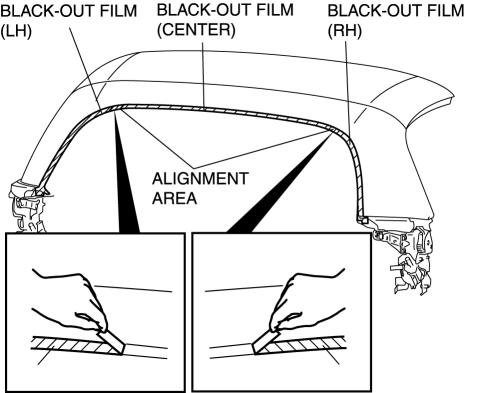

Rear

1. Move the power retractable hardtop in the open direction as shown in the figure until it is separated from the middle roof panel.

2. Peel off the black-out film by pulling it outward from one end.

NOTE:

• Slowly remove the black-out film since it may tear easily.

Applied VIN (assumed)

• JM1 NC15F*8# 156264—

• JM1 NC16F*8# 156261—

• JM1 NC25F*8# 156240—

• JM1 NC26F*8# 156245—

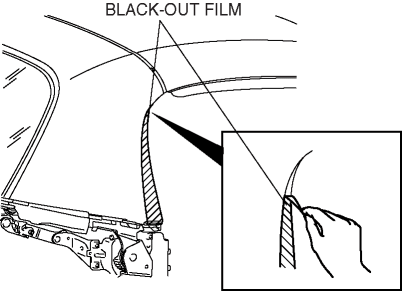

Front

1. Partially peel back the middle roof weatherstrip.

2. Peel off the black-out film by pulling it outward from one end.

NOTE:

1. Slowly remove the black-out film since it may tear easily.

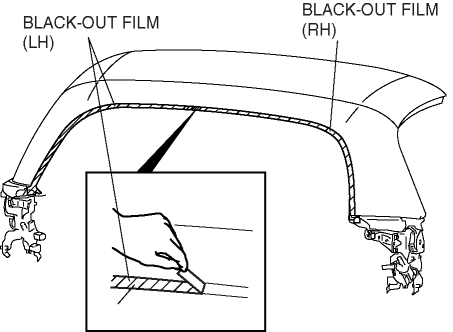

Rear

1. Move the power retractable hardtop in the open direction as shown in the figure until it is separated from the middle roof panel.

2. Peel off the black-out film by pulling it outward from one end.

NOTE:

1. Slowly remove the black-out film since it may tear easily.
