1. Remove the bolts.
2. Remove the fasteners at section A shown in the figure.
3. Install in the reverse order of removal.

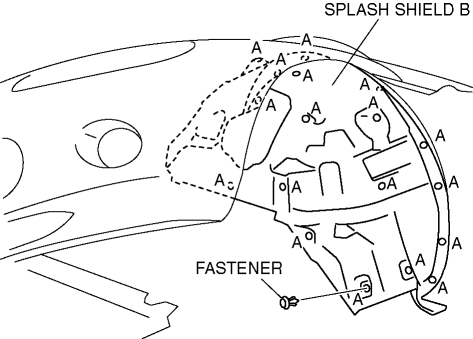

1. Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)
2. Remove the splash shield A. (See Splash Shield A.)
3. Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
4. Remove the fasteners at section A shown in the figure.
5. Remove the splash shield B.
6. Install in the reverse order of removal.
