CAUTION:
Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled while servicing the vehicle.
1. Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)

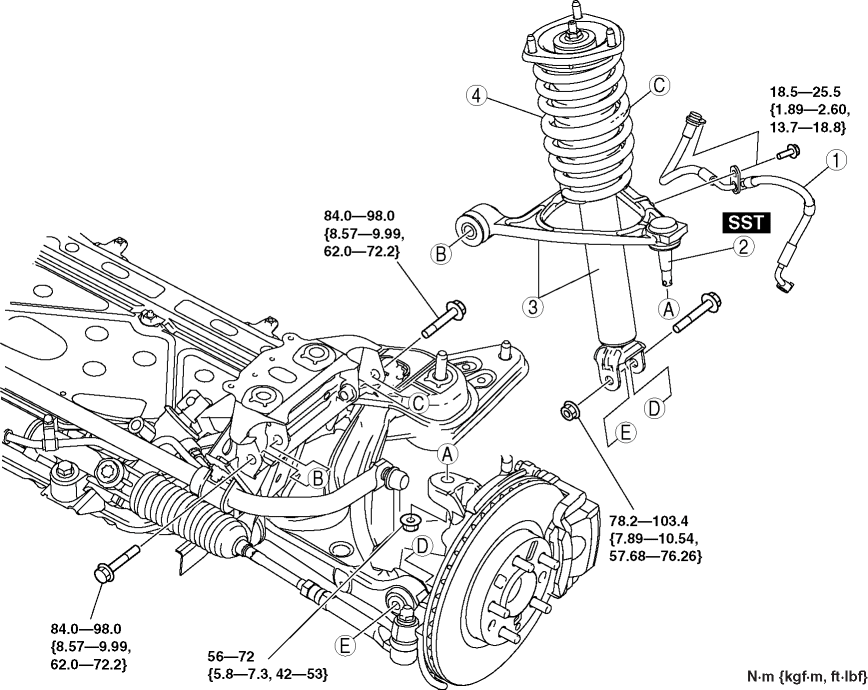

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Inspect the front wheel alignment, and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
|
1 |
Brake hose bracket |
|
2 |
Front upper arm ball joint |
|
3 |
Front shock absorber, coil spring and front upper arm |
|
4 |
Front shock absorber and coil spring |
