2008 - MX-5 - Body and Accessories


1. Remove the splash shield A. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

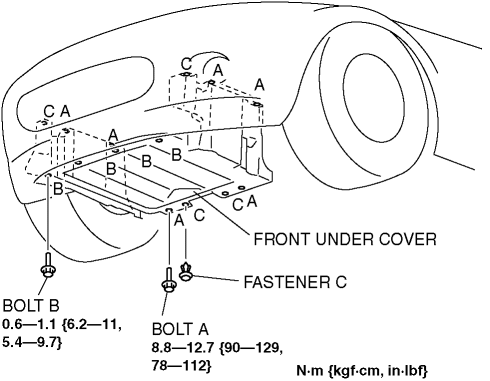

2. Remove the bolts A at section A shown in the figure.

3. Remove the bolts B at section B shown in the figure.
4. Remove the fasteners C at section C shown in the figure.
5. Remove the front under cover.
6. Install in the reverse order of removal.
