2008 - MX-5 - Body and Accessories

DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

1. Remove the following parts:
a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
b. Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)
c. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)
d. Door unit (See DOOR UNIT REMOVAL/INSTALLATION.)
2. Detach the cables from the inner handle and the door lock knob.
3. Detach the rods from the key cylinder and the outer handle.

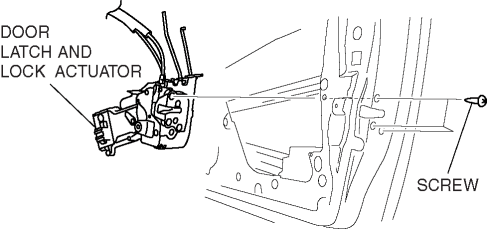

4. Remove the screws, then remove the door latch and lock actuator.

5. Install in the reverse order of removal.
