When performing the following procedures, the immobilizer resetting procedure using the M-MDS must also always be performed: “Keyless control module replacement”, “PCM replacement”, “Steering lock unit replacement”, “Keyless control module and PCM joint replacement”, “Keyless control module, PCM, and steering lock unit joint replacement”, and “Key ID number clearing”. The engine will not start unless all work is performed using the M-MDS.
A card key that can start the engine is necessary for the key programming. If there is no card key that can start the engine, perform the key programming after the card key programming. (See CARD KEY ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM].)
There are two ways to add supplemental key: Using the M-MDS or using two keys that can start the engine to program.
When replacing any of the immobilizer system component parts, adding/clearing keys, or performing other functions, refer to the following table and perform the applicable procedure (No.1 to 5).
Verify that the room fuse is equipped.
|
Ref. No. |
Condition |
Items necessary for procedure (prepare before starting procedure) |
Cautionary notes |
|
1 |
Since two or more keys that can start the engine are necessary, make a spare key. Or program an additional key. |
|
|
|
2 |
If there is only one key that can start the engine, make a spare key. If there is no key, program an additional key. |
|
- |
|
3 |
Replacing the PCM only. |
|
- |
|
4 |
Changing the additional key programming procedure. (Method for programming other keys using two keys that can start the engine is disabled.) |
|
|
|
4 |
Changing the additional key programming procedure. Allows programming using two keys that can start the engine. |
|
|
|
3 |
Clearing the programmed key ID number. |
|
|
|
3 |
Replacing all the keys. (Steering lock unit is not replaced) |
|
|
|
5 |
Replacing the steering lock unit. |
|
|
|
5 |
Replacing the keyless control module. |
|
|
|
5 |
Replacing the instrument cluster. |
|
|
|
- |
Replacing the coil antenna. |
|
|
CAUTION:
The following conditions may cause poor signal communication between the key and vehicle, resulting in the engine not starting or a key registration error. Do not perform any work under the following conditions:
Placing the following items close to the key grip or contacting it.
Spare keys
Keys for other vehicles equipped with an immobilizer system
Any metallic object
Any electronic device, or any credit or other card with magnetic strips
Do not place the following devices in the vehicle while programming, otherwise programming cannot be performed:
M-MDS
Personal computer
Devices that can send/receive the radio waves
NOTE:
The “valid key” used in this manual indicates the key that can start the engine.
If the key adding, programming, clearing, and immobilizer system construction parts replacement are performed, verify that the all keys can start the engine within 5 s after the procedure.
When verifying that the engine starts, wait at least 5 s or more before starting the engine using the next key.
If the engine cannot be started using a programmed key, repeat the procedure from the beginning.
Do not start the engine unless indicated in the procedure. If the engine is started during the programming procedure, programming is stopped at that point. Repeat the procedure starting from the beginning if the engine is started before completion.
Do not place the card key in the vehicle or bring it within approx. 1 m of the vehicle unless indicated in the procedure.
Two or more key ID numbers must be programmed for the engine to start.
A maximum of eight key ID numbers can be programmed for one vehicle. The M-MDS can be used to verify the number of key ID numbers programmed to a single vehicle.
Do not select a M-MDS screen menu other than one indicated in the procedure.
CAUTION:
Do not place the M-MDS in the vehicle while programming, otherwise programming cannot be performed.
1. Fully lower the door glass.
2. Connect the M-MDS to the DLC-2.
3. Pull out the M-MDS cable from the door glass opening and set the M-MDS outside the vehicle.CAUTION:
Protect the cable and body contact area with a clean rag, otherwise they could be damaged.
CAUTION:
Do not place the following devices in the vehicle while programming, otherwise programming cannot be performed:
Card key
M-MDS
Personal computer
Devices that can send/receive the radio waves
Condition
Have two or more valid keys.
NOTE:
A maximum of eight keys can be programmed for one vehicle. If key programming is not successful and DTC 15 appears even though the procedure was performed properly, use the PID/data monitor function of the M-MDS and verify the number of keys that have been programmed.
If eight keys have already been programmed, and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared. To clear the key, refer to “”.
1. Prepare key 3 for programming.
2. Start the engine using key 1.
3. Verify that the security light illuminates for approx. 3 s, and then goes out.
4. Turn the ignition switch to the LOCK position.
5. Using key 1, turn the ignition switch to the ON position.
6. Verify that the security light illuminates for approx. 3 s, and then goes out.
7. Using key 1, turn the ignition switch to the LOCK position within approx. 4 s after the security light goes out.
8. Remove key 1.
9. Repeat Steps 2—5 using key 2 instead of key 1.
10. Repeat Steps 5—8 using key 3 instead of key 1.
11. If additional keys need to be programmed, repeat Steps 1—10, and replace key 3 in Step 10 with the key to be programmed (key 4).
Condition
There is only one valid key. Or, there is no valid key but there is a card key that can start the engine.
NOTE:
A maximum of eight keys can be programmed for one vehicle. If key registration is not successful and DTC 15 appears even though the procedure was performed properly, use the PID/data monitor function of the M-MDS and verify the number of keys that have been programmed.
If eight keys have already been programmed, and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared. To clear the key ID number, refer to “”.
1. Prepare key 1 for programming.
2. Start the engine using a valid key or card key.CAUTION:
Do not place the card key in the vehicle when starting the engine with the valid key, otherwise programming cannot be performed. If the engine is started with the card key, remove the card key from the vehicle after the engine is started.
3. Verify that the security light illuminates for approx. 3 s, and then goes out.
4. Turn the ignition switch to the LOCK position.
5. Connect the M-MDS to the DLC-2. (See .)
6. Using key 1, turn the ignition switch to the ON position.NOTE:
Although the security light flashes and DTC 15 is displayed, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
7. Select “BODY/SECURITY/PATS functions” from the M-MDS screen menu.
8. Select “Program additional ignition key” from the M-MDS screen menu.NOTE:
After selecting the above menu, “operation is successful” is displayed. At this point, the key that turned the ignition switch to the ON position is completely programmed.
In this procedure, the necessary number of the keys are completely programmed. To finish the additional key programming, go to Step 13.
If additional keys need to be programmed, go to the next step.
9. Perform the security access according to the directions on the M-MDS screen. (See SECURITY ACCESS PROCEDURE [ADVANCED KEYLESS SYSTEM].)
10. After verifying that the PATS function menu is displayed again on the M-MDS screen, turn the ignition switch to the LOCK position and remove key 1.
11. Using the key to be programmed, turn the ignition switch to the ON position.
12. Return to the Step 6.
13. After verifying that the PATS function menu is displayed again on the M-MDS screen, select the “Exit (From This Menu)” to finish the M-MDS procedure.
14. After Step 10, wait 5 s or more, and then turn the ignition switch to the LOCK position.
Condition
Prepare a valid key or a card key that can start the engine.
CAUTION:
Before starting Step 1, complete the procedure for PCM replacement. (See PCM REMOVAL/INSTALLATION [LF].)
1. Turn the ignition switch to the LOCK position.
2. Connect the M-MDS to the DLC-2. (See .)
3. Using a valid key or card key, turn the ignition switch to the ON position.NOTE:
Although the security light remains illuminated and DTC 23 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
4. Verify that the keyless warning light illuminates for approx. 3 s, and then goes out.
5. Select “BODY/SECURITY/PATS functions” from the M-MDS screen menu.
6. Select “Parameter Reset” from the M-MDS screen menu.
7. Perform the security access according to the directions on the M-MDS screen. (See SECURITY ACCESS PROCEDURE [ADVANCED KEYLESS SYSTEM].)
8. After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Exit (From This Menu)” to finish the M-MDS procedure.
9. After Step 8, wait 5 s or more, and then turn the ignition switch to the LOCK position.
10. Turn the ignition switch to the ON position.
11. After verifying that the security light and keyless warning light illuminates for 3 s or more turn the ignition switch to the LOCK position.
12. Verify that the all keys can start the engine for 5 s or more after the procedure.
NOTE:
This procedure is performed for enabling/disabling the “No.1 Additional Key Programming Procedure (Using Two Valid Keys)” setting.
This procedure is possible when the vehicle is new, and when replacing the keyless unit with a new one.
If “No.1 Additional Key Programming Procedure (Using Two Valid Keys)” is set to disable, the additional key programming can be only performed using the M-MDS preventing the forging of a spare key by using two keys that can start the engine. This function is for use by rental car agencies or other companies with vehicle fleets.
1. Using the key, turn the ignition switch to the ON position. (The key can be either the valid key or an unprogrammed key)NOTE:
Although the security light flashes and DTC 15 is displayed when an unprogrammed key is used, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
2. Connect the M-MDS to the DLC-2.
3. Select “BODY/SECURITY/PATS functions” from the M-MDS screen menu.
4. Select “Customer Spare Key Programming Enable” or “Customer Spare Key Programming Disable” from the M-MDS screen menu. The key additional programming procedure is as follows according to the selected menu:
Setting
Additional key programming procedure
Method using two valid keys
Method using the M-MDS
Customer spare key programming enable
–
–
Customer spare key programming disable
×
–
- –
- Available
- ×
- Unavailable
5. Perform the security access according to the directions on the M-MDS screen. (See SECURITY ACCESS PROCEDURE [ADVANCED KEYLESS SYSTEM].)
6. After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Exit (From This Menu)” to finish the M-MDS procedure.
7. After Step 6, wait 5 s or more and then turn the ignition switch to the LOCK position.
Condition
When the keyless control module is replaced
Have one or more card keys to be programmed after the replacement.
Have two or more keys to be programmed after the replacement.
When the keyless control module is not to be replaced
Have one or more card keys to be programmed.
Have two or more keys to be programmed after the replacement.
CAUTION:
Perform the procedures in the following order: “Ignition Key Code Erase and Program”, “Program Additional card key”, “Steering lock unit programming”, and “Program additional ignition key”. If there is a failure in the programming, the engine may not be started.
When replacing only the PCM, start from Step 2. Key 1 in the procedure can be any valid key.
Perform the “card key programming procedure” in Step 11 only when the keyless control module is replaced.
Perform the “steering lock unit programming procedure” in Step 12 only when either the keyless control module or steering lock unit is replaced.
1. Prepare two or more keys to be programmed after the key ID number is cleared.
2. Connect the M-MDS to the DLC-2. (See .)
3. Using key 1, turn the ignition switch to the ON position.
4. Verify that the keyless warning light illuminates for approx. 3 s and then goes out.
5. Select “BODY/SECURITY/PATS functions” from the M-MDS screen menu.
6. Select “Ignition Key Code Erase and Program” from the M-MDS screen menu and perform the procedure according to the M-MDS screen.
7. Perform the security access according to the directions on the M-MDS screen. (See SECURITY ACCESS PROCEDURE [ADVANCED KEYLESS SYSTEM].)CAUTION:
The M-MDS displays “At least two or more keys must be programmed”, however, do not perform the key programming and proceed to Step 8. If the procedure is not followed, the engine may not be started.
The key programming procedure is performed at Step 13—16.
8. Select “Parameter Reset” from the M-MDS screen menu.
9. Perform security access again as indicated on the M-MDS screen. (See SECURITY ACCESS PROCEDURE [ADVANCED KEYLESS SYSTEM].)
10. Select the replaced part as indicated on the M-MDS screen.
When replacing only the PCM: Select “PCM”.
When replacing only the instrument cluster: Select “HEC”.
When replacing only the keyless control module: Select “RKE”.
NOTE:
At this time, do not select any other parts from the M-MDS screen menu.
11. Perform “Program Additional card key”. (When replacing keyless control module) (See CARD KEY ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM].)
12. Perform “Steering Lock Unit Programming”. (When steering lock unit) (See STEERING LOCK UNIT ID CODE REGISTRATION[ADVANCED KEYLESS SYSTEM].)
13. After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Exit (From This Menu)” to finish the M-MDS procedure.
14. After Step 13, wait 5 s or more and then turn the ignition switch to the LOCK position.
15. Using key 1, turn the ignition switch to the ON position.
16. After verifying that the security light and keyless warning light illuminate for 3 s or more, turn the ignition switch to the LOCK position and remove key 1.NOTE:
Although the security light flashes and DTC 21 is displayed, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
17. Using key 2, turn the ignition switch to the ON position.
18. Verify that the security light and keyless warning light illuminate for approx. 3 s, and then goes out.
19. After verifying that the security light goes out, turn the ignition switch to the LOCK position using key 2, and then remove key 2.
20. If additional keys need to be programmed, repeat Steps 13—14 with the additional key to be programmed being key 3. If the ignition switch is held in the ON position for 1 min or more, additional key programming according to Steps 18—19 will not be possible. If this occurs, refer to “” to program any additional keys.
21. Start the engine with key 1.

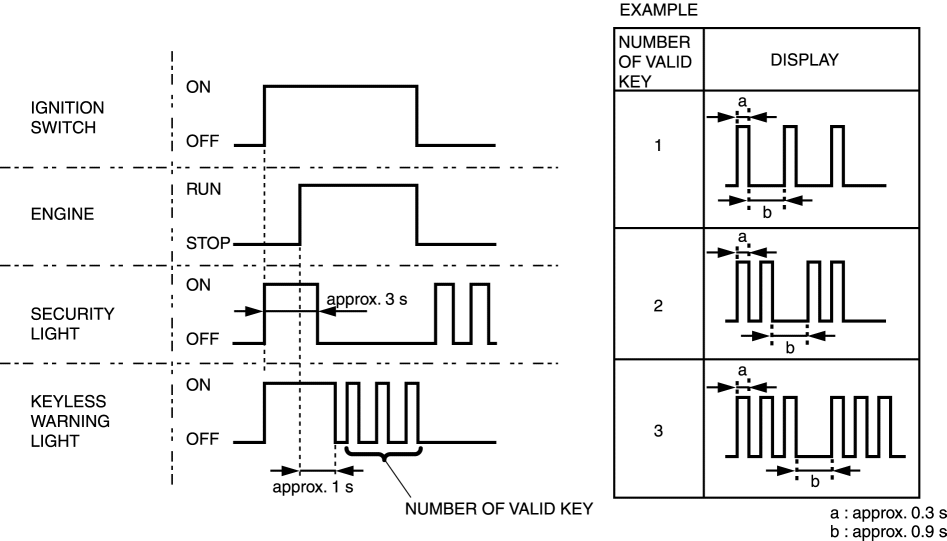

22. Verify that the security light and keyless warning light operate as follows:
From the point when the ignition switch is turned to the ON position, the security light illuminates for approx. 3 s, and goes out.
The keyless warning light illuminates when the ignition switch is turned to the ON position, and the light goes out after approx. 1 s, and then displays the number of the programmed keys.
23. After verifying that the keyless warning light goes out, turn the ignition switch to the LOCK position using key 1, and then remove the key.
24. Repeat Steps 22—23 using key 2 instead of key 1.NOTE:
Perform Steps 22—23 as well when three or more keys are to be programmed.
25. Start the engine using the card key.CAUTION:
Remove any key from the key cylinder.
26. Verify that the security light and keyless warning light operate as follows:
From the point that ignition switch is turned to the ON position, the security light illuminates for approx. 3 s, and goes out.
The keyless warning light illuminate when the ignition switch is turned to the ON position for approx. 1 min, and goes out.
27. After verifying that the keyless warning light goes out, turn the ignition switch to the LOCK position.
