2008 - MX-5 - Body and Accessories

FUEL-FILLER LID OPENER REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

1. To remove the fuel-filler lid opener, remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2. When removing the fuel-filler lid opener lever and cable, perform the following procedure:

a. Remove the seats. (See SEAT REMOVAL/INSTALLATION.)

b. Remove the back trim. (See BACK TRIM REMOVAL/INSTALLATION.)

c. Remove the seat back bar lower garnish. (See SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION.)

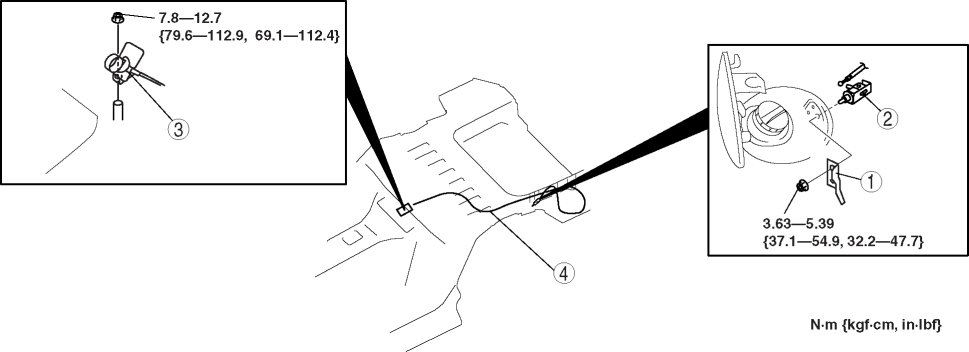

3. Remove in the order indicated in the table.

1	Lift spring
2	Fuel-filler lid opener
3	Fuel-filler lid opener lever
4	Fuel-filler lid opener cable

4. Install in the reverse order of removal.

5. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
