2008 - MX-5 - Body and Accessories

SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION

Except Power Retractable Hardtop

1. Remove the following parts:

a. Console (See CONSOLE REMOVAL/INSTALLATION.)

b. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

c. Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

d. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

e. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

f. Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

g. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

2. Remove the fasteners.

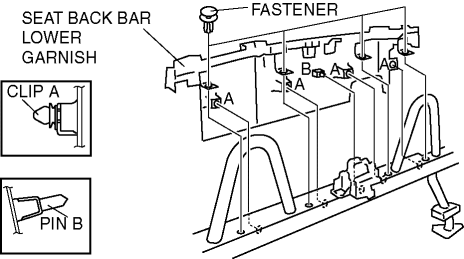

3. Slide the seat back bar lower garnish to the vehicle rear and detach clips A and pin B.

4. Remove the seat back bar lower garnish.

5. Install in the reverse order of removal.

Power Retractable hardtop

1. Remove the following parts:

a. Console (See CONSOLE REMOVAL/INSTALLATION.)

b. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

c. Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

d. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

e. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

f. Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

g. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

h. Roof hook (See ROOF HOOK REMOVAL/INSTALLATION.)

2. Remove the clip A.

3. Remove the roof stopper.

4. Remove the fasteners.

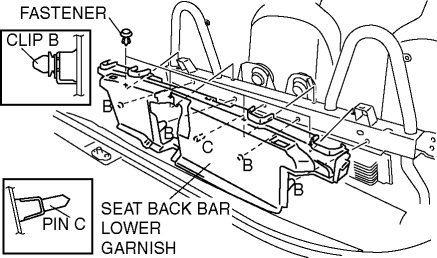

5. Slide the seat back bar lower garnish to the vehicle rear and detach clips B and pin C.

6. Remove the seat back bar lower garnish.

7. Install in the reverse order of removal.
