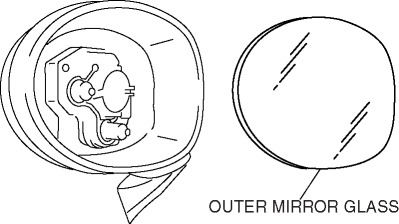

1. Remove the outer mirror glass.(See Outer Mirror Glass Disassembly Note.)(See Outer Mirror Glass Assembly Note.)
2. Assemble in the reverse order of disassembly.

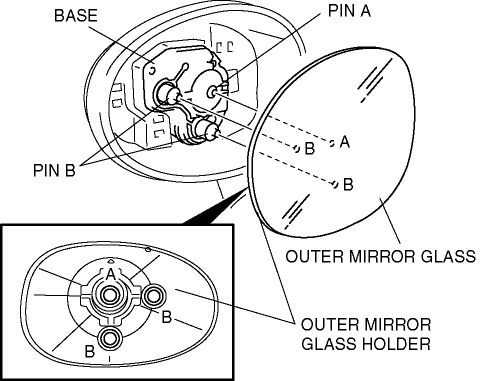

1. Press area A of the outer mirror glass so that area B moves outward.
2. Detach pin A while lifting up the inside of the outer mirror glass holder.
3. Pull out the outer mirror glass holder and detach pins B.
4. Remove the outer mirror glass holder and the outer mirror glass as a single unit.
1. Press area A of the mirror glass into the base to attach pin A.
2. Press areas B of the outer mirror glass into the base to attach pins B.
