1. Remove the battery cover.
2. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)
4. Remove the door speaker.(See DOOR SPEAKER REMOVAL/INSTALLATION.)
5. Remove the door unit.(See DOOR UNIT REMOVAL/INSTALLATION.)
6. Remove clips.
7. Rotate the power outer mirror in the direction shown by the arrow.

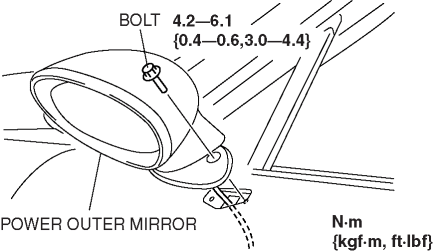

8. Remove the bolt.
9. Rotate the power outer mirror in the direction shown by the arrow.
10. Remove the bolt and the power outer mirror.
11. Install in the reverse order of removal.
