2008 - MX-5 - Body and Accessories

POWER OUTER MIRROR INSPECTION

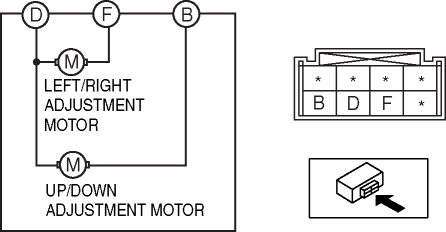

1. Apply battery positive voltage and connect the ground to the corresponding power outer mirror terminals, and then inspect the operation of the power outer mirror.

• If not as specified, replace the power outer mirror.

Operation	Terminal
	B+	GND
Up	B	D
Down	D	B
Left	F	D
Right	D	F
