2008 - MX-5 - Body and Accessories

POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the handle pull.(See (DOOR TRIM DISASSEMBLY/ASSEMBLY.)
4. Remove the armrest.(See DOOR TRIM DISASSEMBLY/ASSEMBLY.)
5. Remove the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)

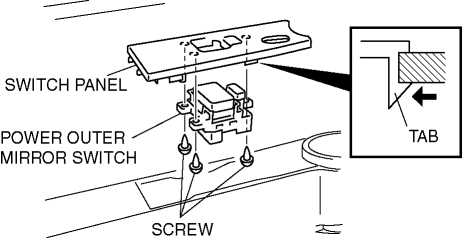

6. Remove the switch panel from the door trim by depressing the tab.

7. Remove the screws and the power outer mirror switch.
8. Install in the reverse order of removal.
