1 |
Clip |
|
2 |
Shroud seal plate |
|
3 |
Harness clip |
|
4 |
Front bumper reinforcement |
1. Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [LF].)
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
4. Remove the fresh air duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF].)
5. Remove the horn. (See HORN REMOVAL/INSTALLATION.)

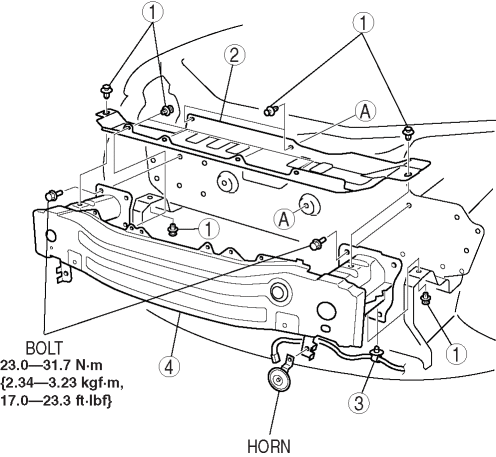

6. Remove in the order indicated in the table.
1
Clip
2
Shroud seal plate
3
Harness clip
4
Front bumper reinforcement
7. Install in the reverse order of removal.
