FRONT BUMPER DISASSEMBLY/ASSEMBLY

2008 - MX-5 - Body and Accessories

FRONT BUMPER DISASSEMBLY/ASSEMBLY

1. To disassemble the front bumper, remove the following parts:
a. Front fog lights (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

b. Front side marker light. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.

1

Fastener

2

Set plate RH

3

Set plate CTR

4

Set plate LH

5

Clip

6

Energy absorbing form

7

Front bumper mesh

8

Air dam skirt

9

Lamp hole cover (Vehicles without the front fog lights)

10

Lamp hole cover (Vehicles with the front fog lights)

11

Ornament

12

License plate holder

13

Front bumper fascia

3. Assemble in the reverse order of disassembly.

< Previous Next >

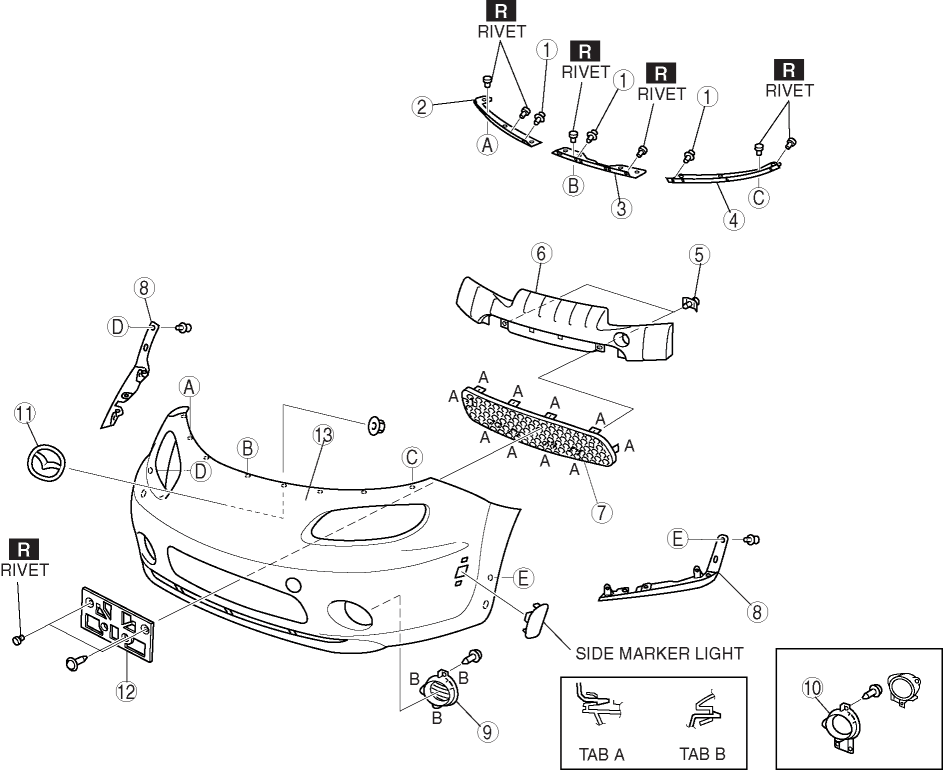

1	Fastener
