DTC U0214

Keyless receiver.

DETECTION CONDITION

• When the keyless receiver power supply voltage is less than 7.5 V.

POSSIBLE CAUSE

• Keyless receiver malfunction

• Open or short circuit in wiring harness between keyless control module and keyless receiver

• Keyless control module malfunction

STEP

INSPECTION

ACTION

1

• Disconnect keyless receiver connector.

• Is there continuity between keyless receiver terminal E and ground?

Yes

Go to next step.

No

• Repair the wiring harness between the keyless receiver and ground.

• Go to next step.

2

• Disconnect keyless control module connector and keyless receiver connector.

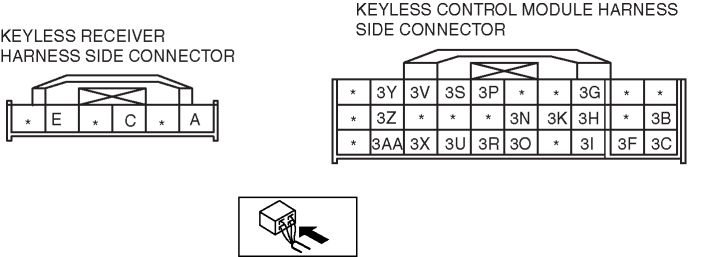

• Inspect the continuity between the following connector terminals.

• keyless control module: 3S—keyless receiver: A

• keyless control module: 3U—keyless receiver: C

• Is there continuity?

Yes

Go to next step.

No

• Repair the wiring harness between the keyless receiver and keyless control module.

• Go to next step.

3

• Turn ignition switch to ON position.

• Measure voltage at terminal 3S of keyless control module connector.

• Is voltage more than 7.5 V?

Yes

Replace keyless receiver.

(See KEYLESS RECEIVER REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM])

No

Replace the keyless control module and perform the resetting procedure for the advanced keyless system when replacing the keyless control module.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM].)

(See CARD KEY ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM])

(See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM])

(See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS SYSTEM])

(See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [KEYLESS ENTRY SYSTEM])

(See SECURITY ACCESS PROCEDURE [ADVANCED KEYLESS SYSTEM])
