2008 - MX-5 - Transmission/Transaxle

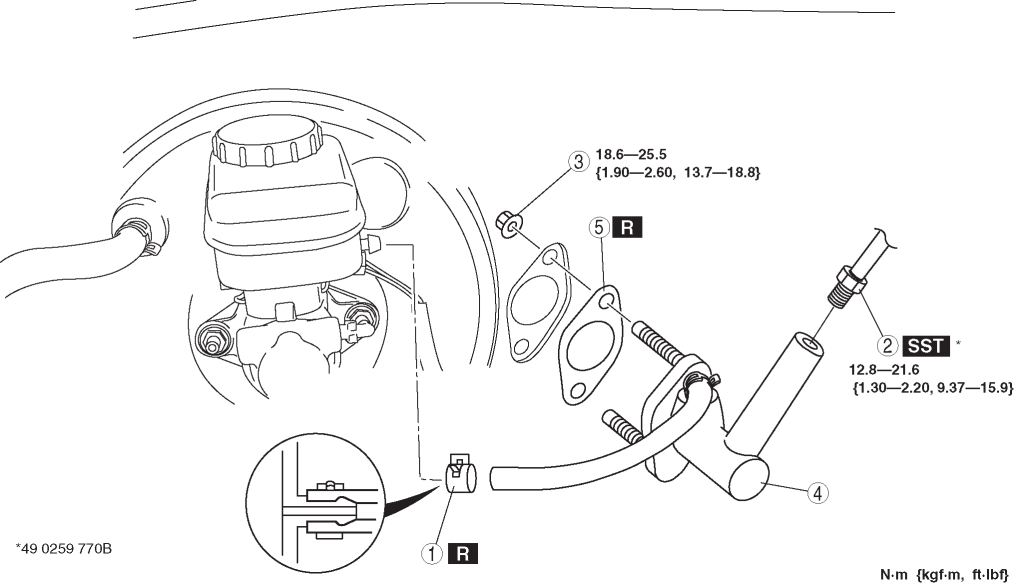

CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION
CAUTION:
Fluid will damage painted surfaces. Be careful not to spill any fluid on painted surfaces. If it is spilled, wipe it off immediately.
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Bleed the air from the system.(See CLUTCH FLUID REPLACEMENT.)
4. Inspect and adjust the clutch pedal.
|
1 |
Hose clip |
|
2 |
Clutch pipe |
|
3 |
Nut |
|
4 |
Clutch master cylinder |
|
5 |
Packing |
