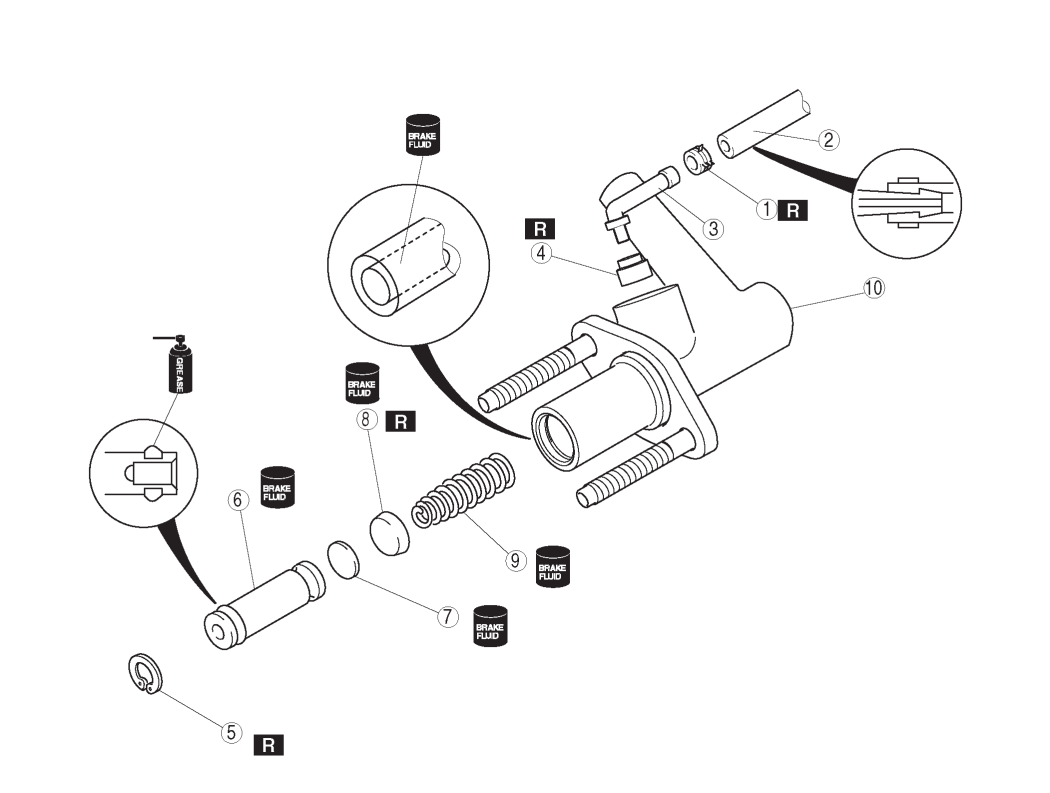

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1 |
Hose clip |
|
2 |
Reserve tank hose |
|
3 |
Joint |
|
4 |
Bushing |
|
5 |
Snap ring |
|
6 |
Piston, secondary cup component |
|
7 |
Spacer |
|
8 |
Primary cup |
|
9 |
Return spring |
|
10 |
Clutch master cylinder body |

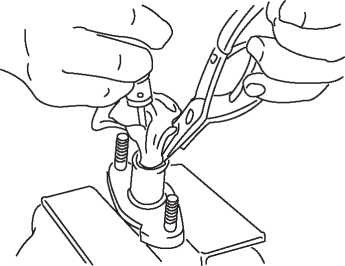

1. While pressing the piston in with a cloth-wrapped pin punch to protect the push rod contacting surface, remove/install the snap ring.
