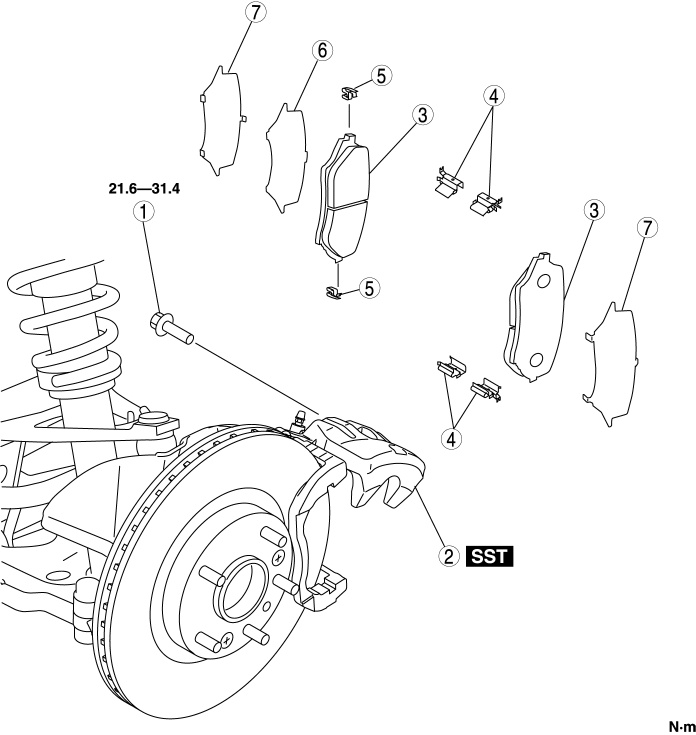

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.
|
1 |
Bolt |
|
2 |
Caliper |
|
3 |
Disc pad |
|
4 |
Guide plate |
|
5 |
Pad wear indicator |
|
6 |
Floating shim |
|
7 |
Shim |
