CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

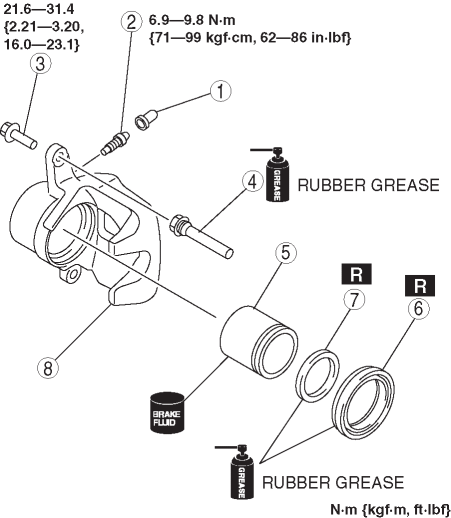

1. Disassemble in the order indicated in the table.

1	Bleeder cap
2	Bleeder screw
3	Bolt
4	Sleeve
5	Piston (See Piston Disassembly Note.)
6	Dust seal
7	Piston seal
8	Caliper body

2. Assemble in the reverse order of disassembly.

Piston Disassembly Note

CAUTION:

• The piston could be damaged if blown out with great force. Blow the compressed air slowly to prevent the piston from suddenly popping out.

1. Insert a piece of wood in the caliper as shown in the figure, and then blow compressed air through the bleeder screw hole to remove the piston from the caliper body.
