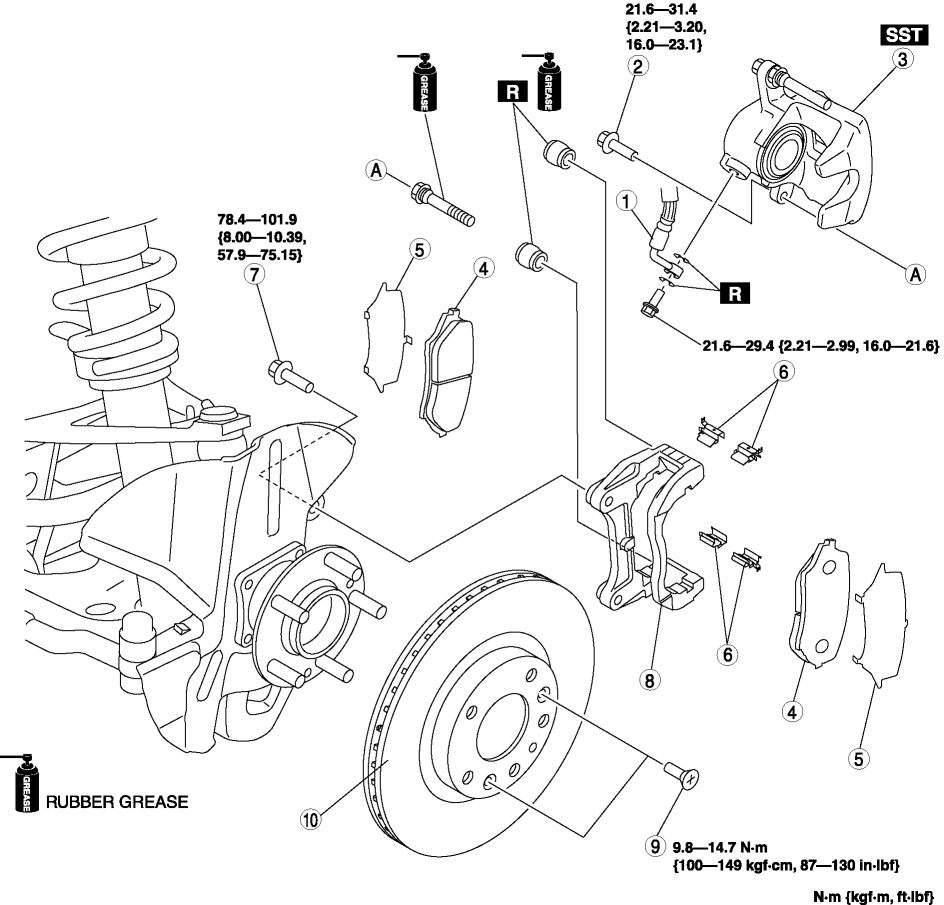

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.
|
1 |
Brake hose |
|
2 |
Bolt |
|
3 |
Caliper (See Caliper Installation Note.) |
|
4 |
Disc pad |
|
5 |
Shim |
|
6 |
Guide plate |
|
7 |
Bolt |
|
8 |
Mounting support |
|
9 |
Screw |
|
10 |
Disc plate |
1. Clean the exposed area of the piston.

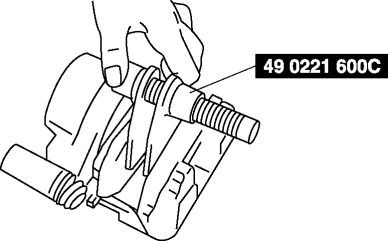

2. Install the piston using the SST.
3. Install the caliper.
