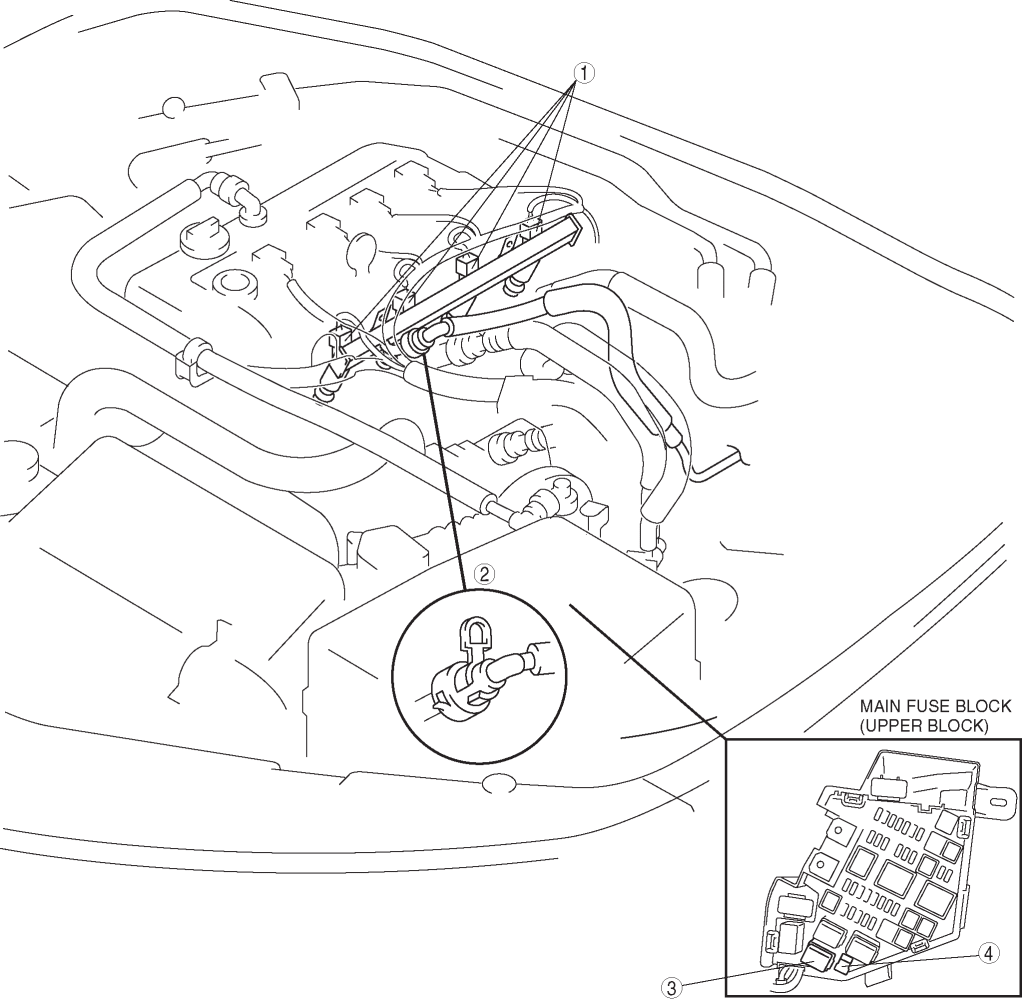

1

Fuel injector

(See FUEL INJECTOR REMOVAL/INSTALLATION [LF].)

(See FUEL INJECTOR INSPECTION [LF].)

2

Quick release connector (Type A)

(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [LF].)

3

Fuel pump relay

4

Check connector

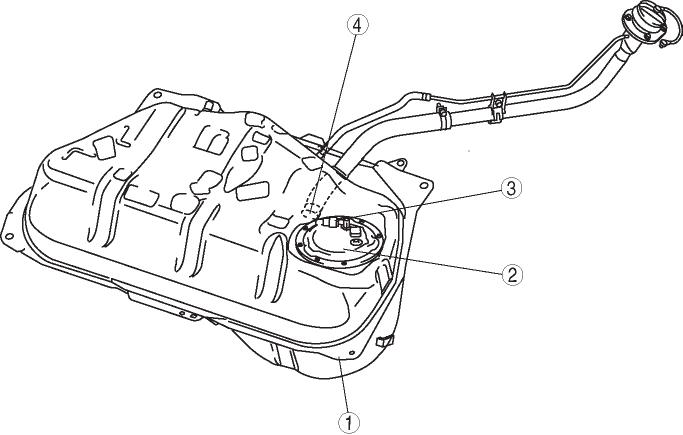

1

Fuel tank

(See FUEL TANK REMOVAL/INSTALLATION [LF].)

(See FUEL TANK INSPECTION [LF].)

2

Fuel pump unit

(See FUEL PUMP UNIT REMOVAL/INSTALLATION [LF].)

(See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [LF].)

(See FUEL PUMP UNIT INSPECTION [LF].)

3

Quick release connector (Type B)

(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [LF].)

4

Nonreturn valve

(See NONRETURN VALVE INSPECTION [LF].)
