2008 - MX-5 - Body and Accessories

KEY REMINDER SWITCH REMOVAL/INSTALLATION [EXCEPT ADVANCED KEYLESS SYSTEM]

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

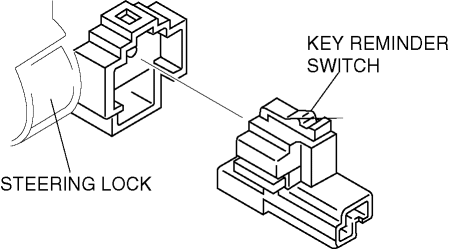

4. Disconnect the key reminder switch connector.
5. Remove the key reminder switch.

6. Install in the reverse order of removal.
